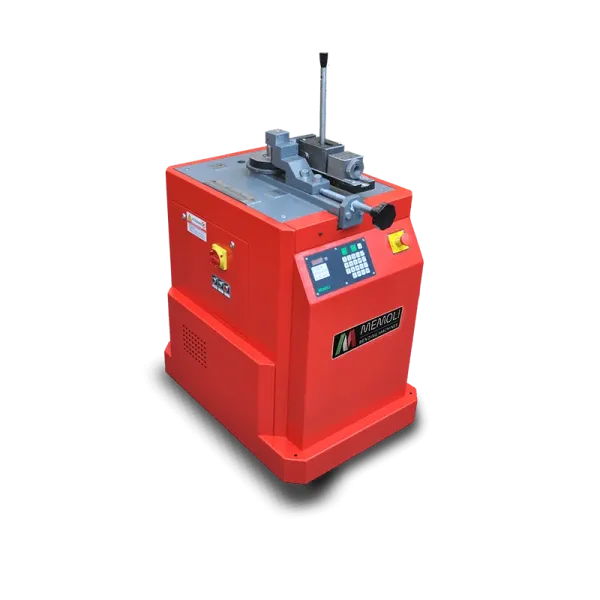

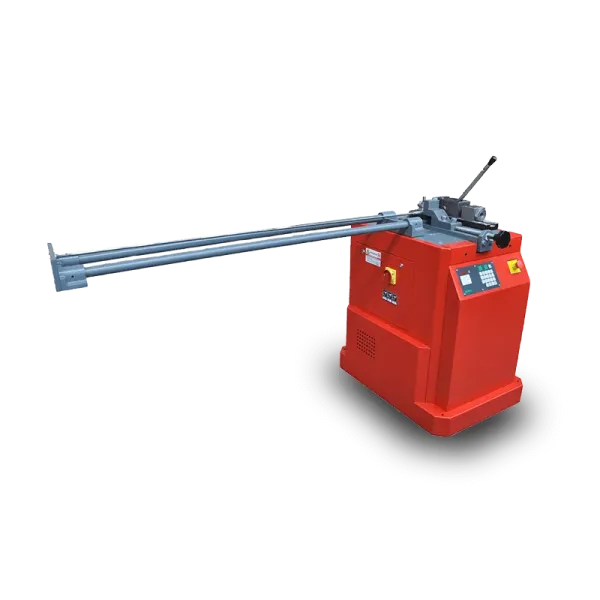

Memoli EUREKAMATIC
Just one machine for 4 different operations: circular bending, angle bending, tube bending in two variants – with or without a mandrel – as well as spiral bending and twisting.
Machined from solid cast iron block and designed to work cold iron, it is extremely easy to use because it is run and aided by an incorporated software, which allows total precision and efficiency of the curving system. The display shows the desired angle of curvature and constantly informs the operator about the position and movements of the curving axis.
The software allows the storage of 45 different angles of curvature. It is very easy and fast to change toolings. The machine can work both in manual and in semi-automatic mode, thus reducing working times and error possibility. It is also possible to have the clamping vice either pneumatic or hydraulic, besides some more customized options depending on the Customer’s specific needs.
Eurekamatic has been for many years so far one of the most requested and used machines by blacksmiths for their applications on tubes, profiles and square tubes, in order to carry out railings, handrails, tables, chairs, doors, windows, gratings and many more
CONTROL PANEL
User-friendly
Digital screen
Tactile keyboard
RAM
Safety-mode
The software allows the storage of 45 different angles of curvature. It is very easy and fast to change toolings. The machine can work both in manual and in semi-automatic mode, thus reducing working times and error possibility. It is also possible to have the clamping vice either pneumatic or hydraulic, besides some more customized options depending on the Customer’s specific needs.
Eurekamatic has been for many years so far one of the most requested and used machines by blacksmiths for their applications on tubes, profiles and square tubes, in order to carry out railings, handrails, tables, chairs, doors, windows, gratings and many more
CONTROL PANEL
User-friendly
Digital screen
Tactile keyboard
RAM
Safety-mode
| MOTOR POWER | KW 4 |
|---|---|
| Rotation Speed | 7 - 14 g/1’ |
| Gears | A bagno d’olio |
| Weight | 280 kg |
| Size | 850 x 620 x 980 h. |
