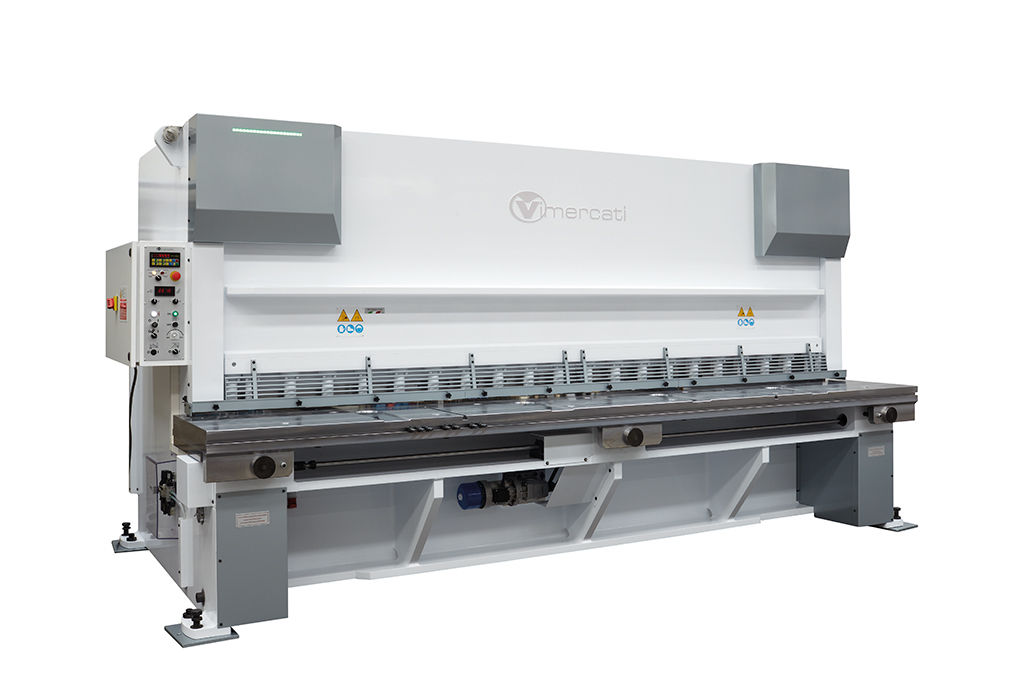

VIMERCATI CH 3020
Vimercati CH 3020 guillotine shears are made in Italy from the best components. They are equipped with modern technologies. They are designed for cutting metal with a maximum thickness of up to 20 mm. The guillotine allows to carry out cutting of sheets under the necessary overall dimensions. The unit operates at a speed of 70 mm/s.
Guillotine shears CH 3020 have an impressive list of user benefits. Among the main ones it is worth noting:
— possibility of cutting a wide range of metals with different resistance and thickness up to 20 mm;
— high engine power (30 hp);
— large cutting length (3050 mm) with smooth adjustment;
— the ability to adjust the angle of the blade (up to 30 degrees).
Metal cutting on the CH 3020 guillotine is carried out quickly, efficiently, with minimal effort on the part of the operator. The manufacturer guarantees a long service life, uninterrupted operation and reliability of the machine, even during intensive use.
— possibility of cutting a wide range of metals with different resistance and thickness up to 20 mm;
— high engine power (30 hp);
— large cutting length (3050 mm) with smooth adjustment;
— the ability to adjust the angle of the blade (up to 30 degrees).
Metal cutting on the CH 3020 guillotine is carried out quickly, efficiently, with minimal effort on the part of the operator. The manufacturer guarantees a long service life, uninterrupted operation and reliability of the machine, even during intensive use.
| MATERIAL | Aluminum Steel Stainless steel |
| MAX THICKNESS, MM | 20 |
| WEIGHT, KG | 21900 |
| HEIGHT, MM | 2650 |
| LENGTH, MM | 3750 |
| WIDTH, MM | 2500 |
| MOTOR POWER, HP | 35 |
| CUT LENGTH, MM | 3050 |
| DISTANCE BETWEEN RACKS, MM | 3200 |
| BACK STOP, MM | 1000 |
| SPEED, MM/S | 55 |
| MINIMUM CUT ANGLE | 30' |
| MAXIMUM CUT ANGLE | 2° 30' |
