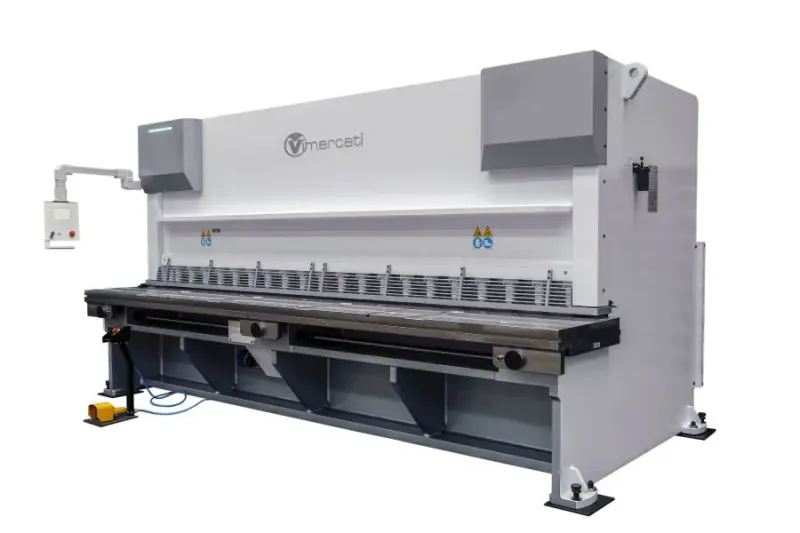

VIMERCATI CH 6004
Vimercati hydraulic guillotine shears are designed for clean, high-precision and high-speed cutting of sheet metal from 2000 to 6000 mm long and from 4 to 30 mm thick.
- High reliability and long frame life: blade beam drive with spherical joints in an oil bath, a rigid monolithic structure and components from leading global manufacturers.
- Precise cutting edge: the table is moved by three massive lead screws for micrometric adjustment of the blade gap to any metal thickness.
- Cutting options: pneumatic and hydraulic thin-sheet supports, systems that prevent narrow strips from twisting (anti-twist) and user-friendly touchscreen CNCs.
- Comprehensive safety (CE standards): protective guards for the cutting area and multi-beam optoelectronic light barriers with instant cycle blocking.
| Parameter | Value |
|---|---|
| Cutting length | 6050 mm |
| Maximum sheet thickness | 4 mm |
| Distance between housings | 6200 mm |
| Throat depth | 500 mm |
| Worktable height | 900 mm |
| Cutting angle range | 30′ – 1°30′ |
| Back gauge stroke (X axis) | 1000 mm |
| Back gauge speed (X axis) | 70 mm/s |
| Blade beam down speed | 80 mm/s |
| Blade beam up speed | 110 mm/s |
| Main motor power | 15 kW |
| Back gauge and blade gap drives | 0.37 kW each |
| Hydraulic working pressure | 220 bar |
| Machine weight (approx.) | 23,000 kg |
| Base dimensions (length × width) | 6700 × 2300 mm |
| Machine height | 2400 mm |
F.lli Vimercati s.n.c. was founded in 1973 in Brianza, north of Milan, on the initiative of the four Vimercati brothers, who still run the company today. The company specialises in the production of high-quality, reliable press brakes and guillotine shears.
Fratelli Vimercati’s production facilities cover 7,500 m² and employ 50 people — designers, engineers, mechanics and administrative staff. The company has a worldwide sales network. All products are 100% made in Italy using the best components and the latest manufacturing technologies.
The company’s philosophy is based on studying users’ requirements and tailoring its solutions to their needs. Vimercati pays close attention to market development and the creation of new technologies.
