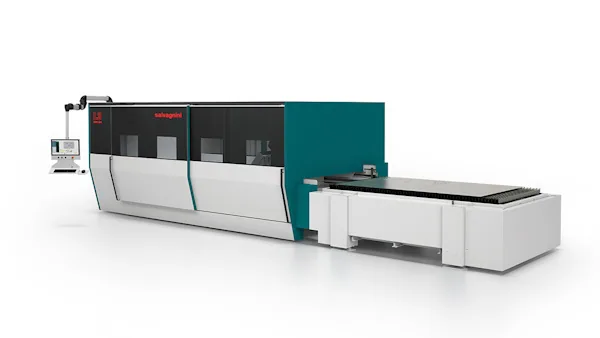

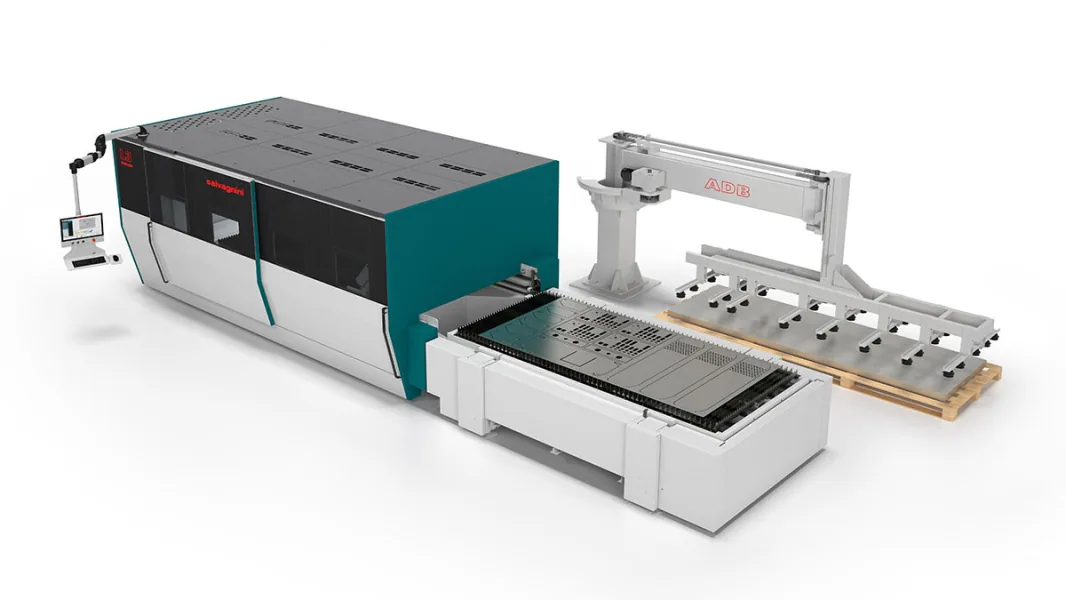

Salvagnini L3-30.G4 8 kW

The Salvagnini L3-30.G4 fiber laser with an 8 kW source cuts steel, stainless steel and aluminium up to 25 mm thick and copper and brass up to 10 mm. The beam is generated by the laser and delivered through an optical fiber, so the L3 works faster and more accurately, with greater reliability and better performance. The simple design makes production changeovers easier and reduces maintenance costs: the system has no mirrors, and a lightweight single-lens head is suitable for all metals and thicknesses. Thanks to the light head, the machine works at high speeds without inertia that would impair part quality.

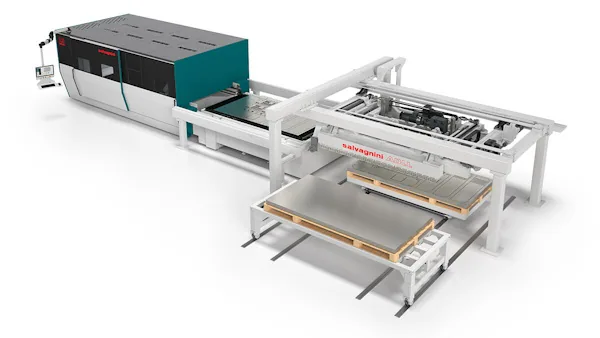

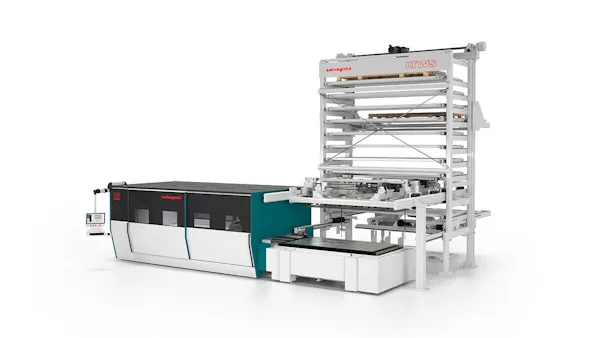

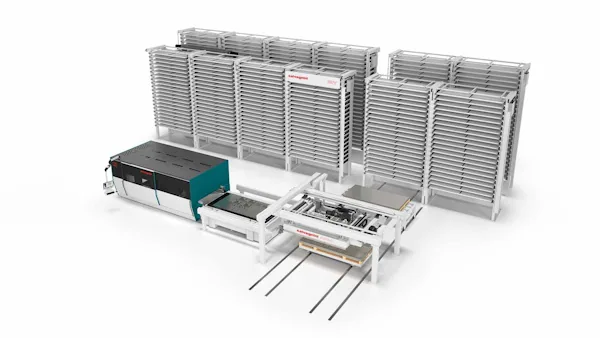

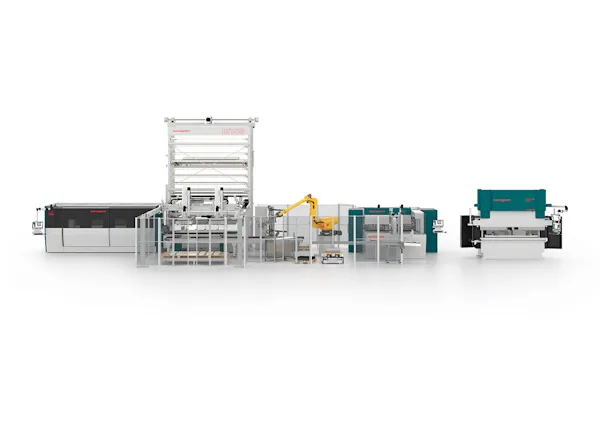

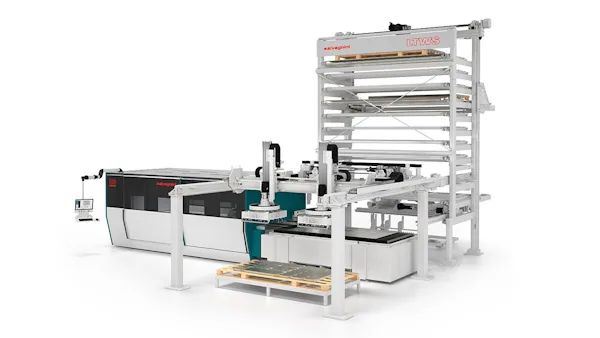

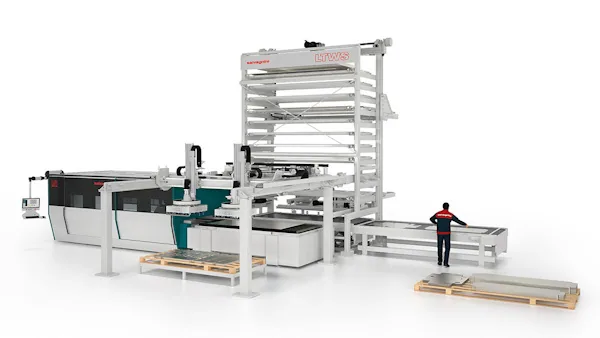

Energy consumption up to 70% lower makes the L3 a productive machine for high-quality parts at minimal cost: with a maximum absorbed power of 34 kW, the average is 20 kW. With the ACUT option, the machine cuts sheets up to 20 mm thick with compressed air. The L3 can be connected to automation systems for 24/7 operation with high productivity.

Simplicity:	automatic parameter modulation
Ergonomic design:	airplane-type structure
Versatility:	single-lens head cooled without gas
Configurability:	modular automation
Quality:	smart process solutions
Flexible automation:	precise unmanned operation
Safety:	class 1 machine

XY working range (mm)	3048 × 1524
Z axis stroke (mm)	160
Max. XY speed (m/min)	170
Position accuracy Pa (mm)	0.05
Average position range Ps (mm)	0.03
Cutting thickness, steel (mm)	0.5 – 25
Cutting thickness, stainless steel (mm)	0.5 – 25
Cutting thickness, aluminium (mm)	0.5 – 25
Cutting thickness, copper (mm)	0.5 – 10
Cutting thickness, brass (mm)	0.5 – 10
Max. absorbed power (kW)	34
Average absorbed power (kW)	20

Salvagnini is one of the world’s pioneers in fiber technologies, creating high-performance 2D cutting systems based on many years of experience and unique patented solutions. The proprietary “Salvagnini formula” combines powerful laser sources with intelligent sensors and adaptive automation, making it possible to raise production efficiency to a record 90%. As a leader in digital transformation, the company offers comprehensive ecosystems for “smart factories”, seamlessly integrating equipment into ERP systems for maximum production transparency. Salvagnini equipment represents a flexible and environmentally friendly solution that respects the operator’s work and ensures minimum cost per part.
Salvagnini L3.G4
