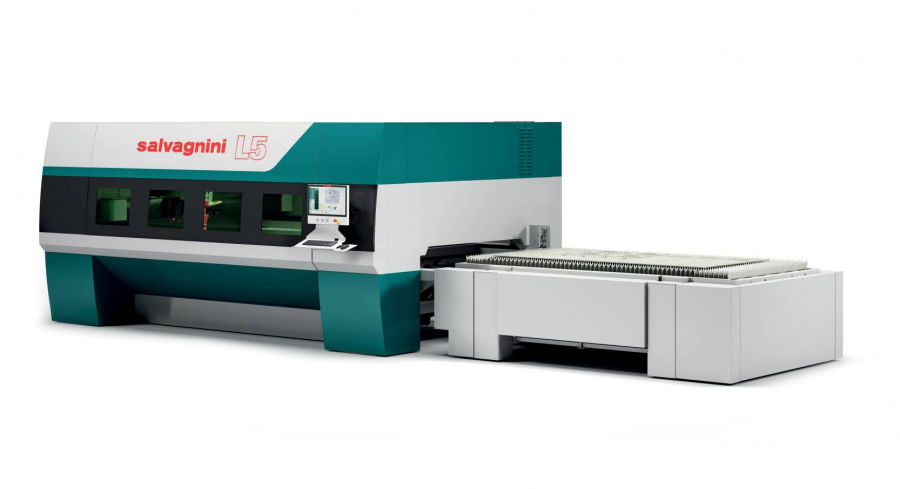

Salvagnini L5-30 10 kW

Salvagnini L5 — is a high-dynamic fiber laser cutting system specifically designed for high-performance part manufacturing in environments with frequent order and material changes. Unlike traditional solutions, this machine utilizes a unique "Compass" mechanical system with a carbon fiber manipulator, allowing the cutting head to reach accelerations of up to 5g on short trajectories, providing unprecedented processing speeds.
The L5 system is modular and easily adaptable to specific production tasks through a wide range of configurations, sizes, and power from 2 to 10 kW.

Exceptional Dynamics and Productivity
The patented "airplane" structure and "Compass" system achieve highest positioning speeds without expensive and energy-intensive linear motors, making the machine a leader in efficiency when cutting complex geometries.

Versatility Without Reconfiguration
The single Salvagnini optical head with DRY-COOLING active lens cooling technology allows cutting the full range of available thicknesses and materials without operator intervention or component replacement.

Intelligent Process Control
The TRADJUST function automatically modulates cutting parameters depending on the trajectory, guaranteeing perfect edge quality and dimensional accuracy even for operators with minimal experience.

Full Digital Integration
Thanks to the STREAM software ecosystem and OPS module, the machine becomes part of a "smart factory," providing automatic nesting plan creation, cost calculation, and real-time two-way data exchange with the enterprise ERP system.


X Y worktable	3048x1524
Z axis stroke	100
Maximum XY speed (m/min)	156
Accuracy:
Position accuracy Pa	0.08
Average position range Ps	0.03
Cutting capacity (thicknesses)
Steel (S185JR,S235JR, RAEX 250 C LASER)	0.5-25
Stainless steel (AISI 304, X5CrNi18-10 1.4301)	0.5-30
Aluminum (Al 99.5 EN AW 1050A)	0.5-30
Copper (Cu-ETP CW004A H040 EN1652)	0.5-10
Brass (CuZn37 CW508L H055 EN1652)	0.5-10
Consumption
Maximum power consumption (kW)	42 kW
Average power consumption (kW)	24 kW

Salvagnini was among the first in the world to bet on fiber optic technology and continues to set industry trends to this day. The Italian company doesn’t just assemble machines; it creates unique, patented solutions like the "Compass" system, which makes the cutting head literally "fly" over the metal. Today, the brand builds entire "smart factories," combining powerful equipment and intelligent software into a single ecosystem for maximum autonomous operation. By choosing Salvagnini, you get a fusion of decades of experience and bold engineering ideas that make complex metalworking truly simple and efficient.
