EMC GIANT M1650
A powerful industrial machine for automated metal grinding, designed specifically for efficient processing of wide sheet workpieces up to 1650 mm.
| Parameter / Module | Characteristics and Features |
|---|---|
| Useful working width | 1650 mm |
| Working thickness (min/max) | 0.5 – 170/200 mm |
| Worktable height | 900 mm (fixed) |
| Module R (Sanding belt) | Length: 2620 mm; Diameter: Ø250/300 mm; Power: 18.5–22 kW; Speed: 3–21 m/s |

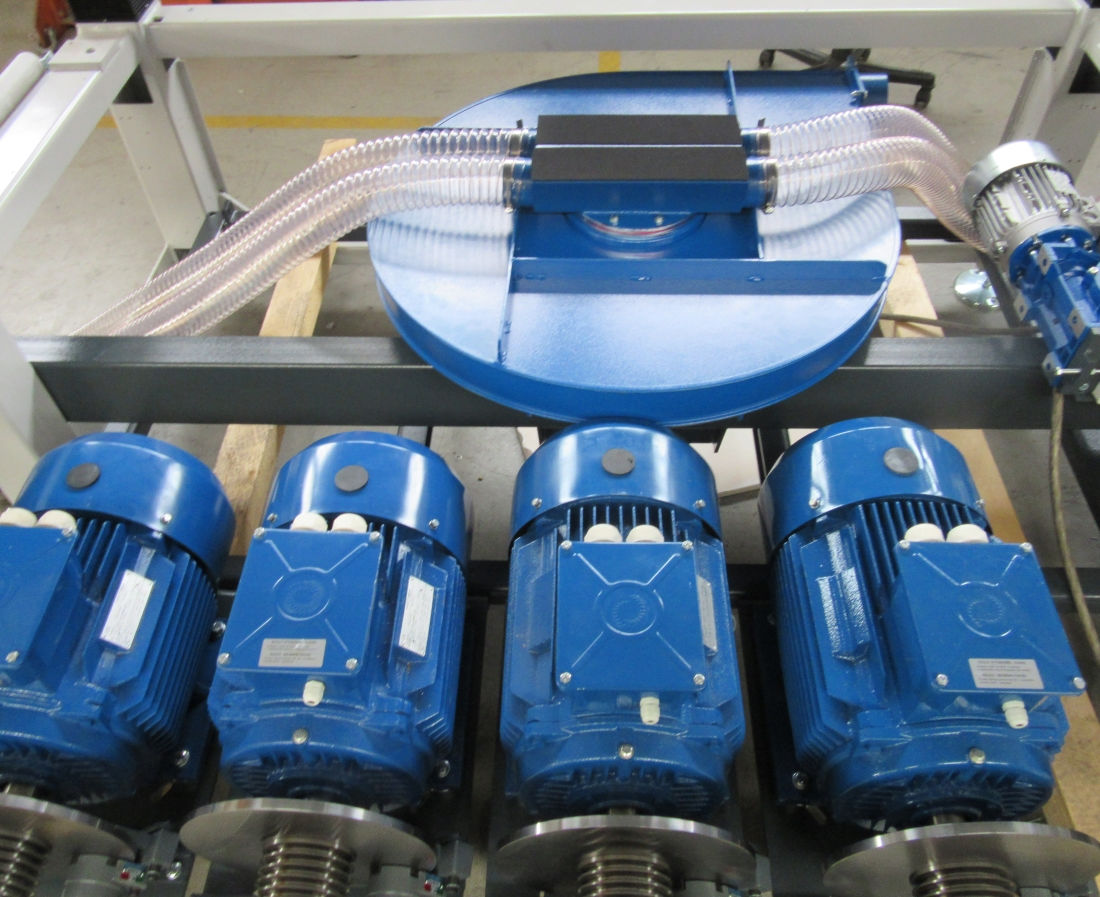

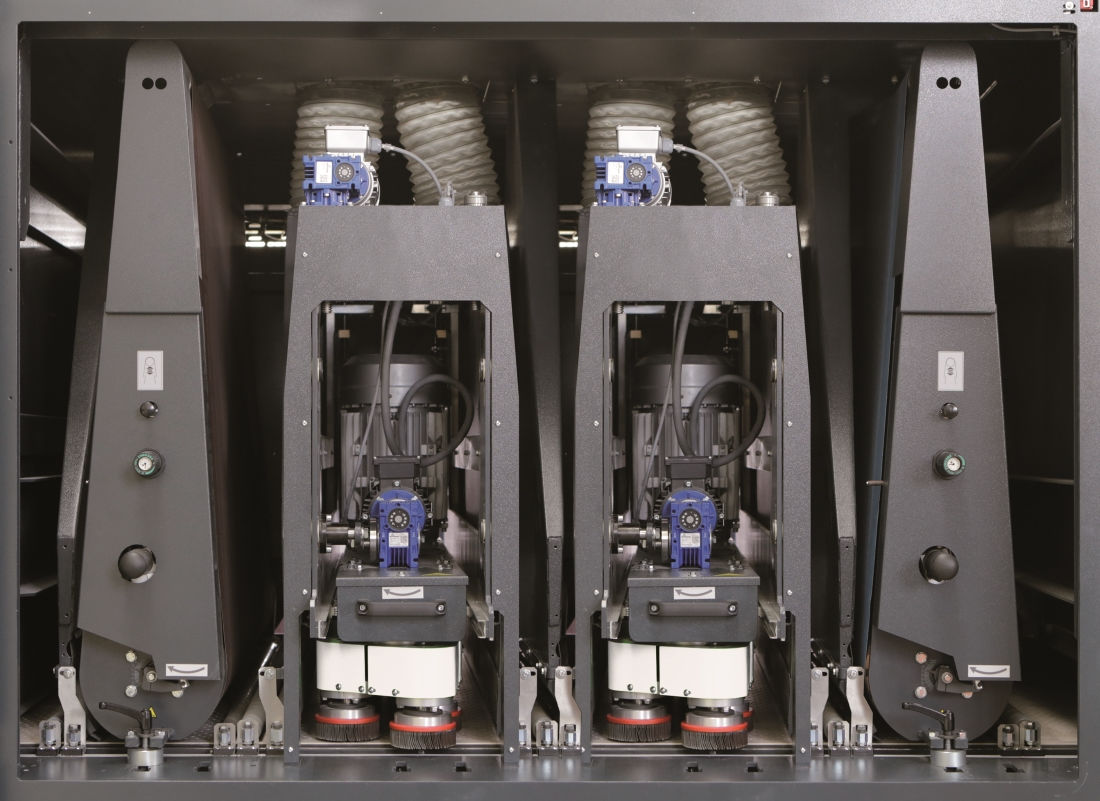

| Brush group (h, H, Q) | h: single-row oscillating; H: double-row oscillating; Q: planetary system |

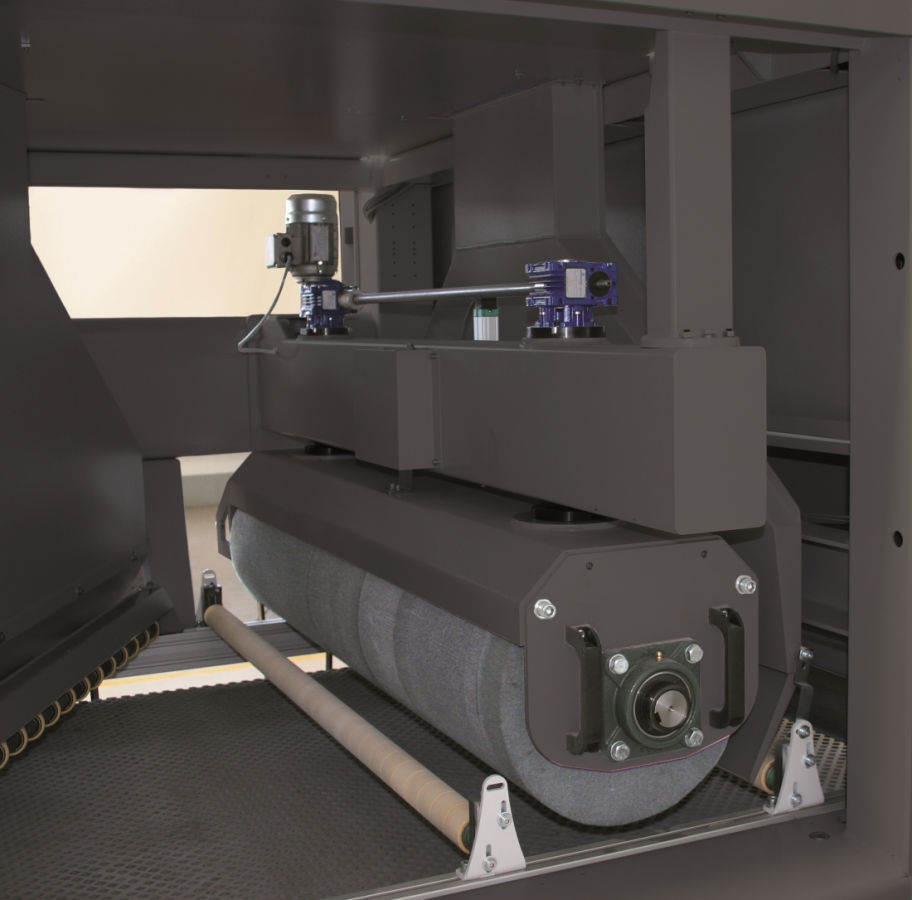

| Longitudinal brush (B and b) | Parameters are selected for specific production tasks |

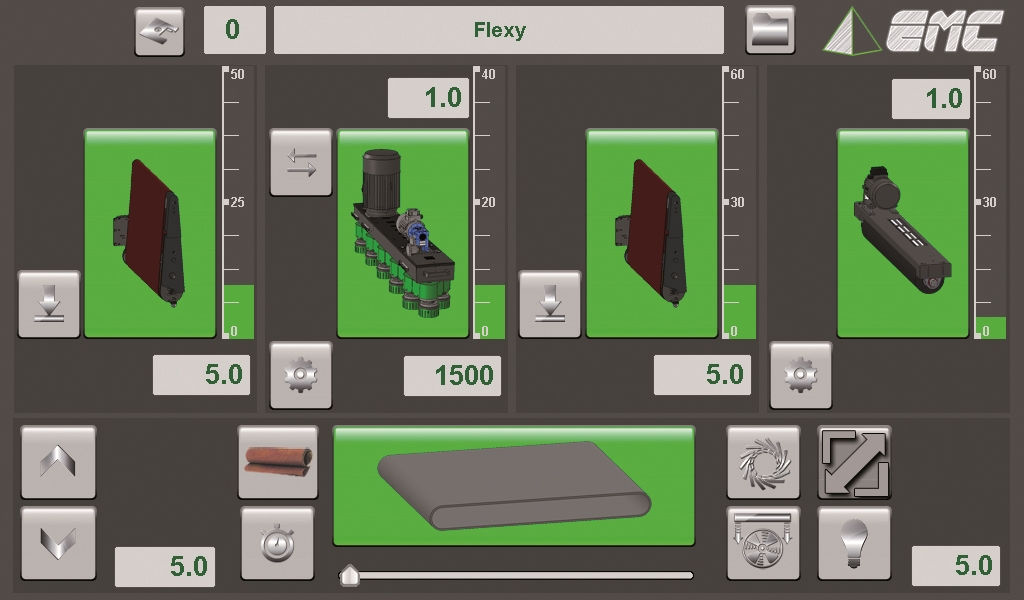

| Control (15.4" Display) | USB, RS232, Ethernet; memory up to 300 programs; self-diagnostics |
| Vacuum system | Internal fan with inverter integrated into the frame |

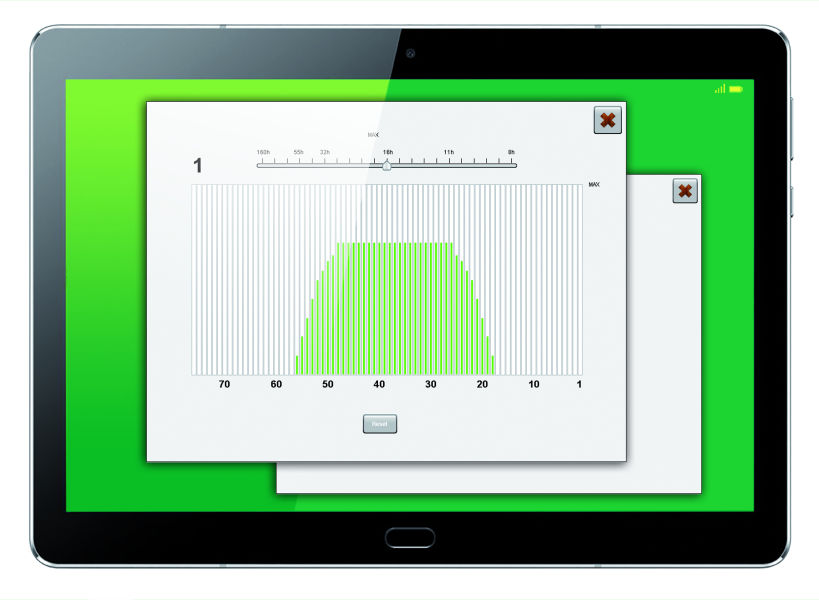

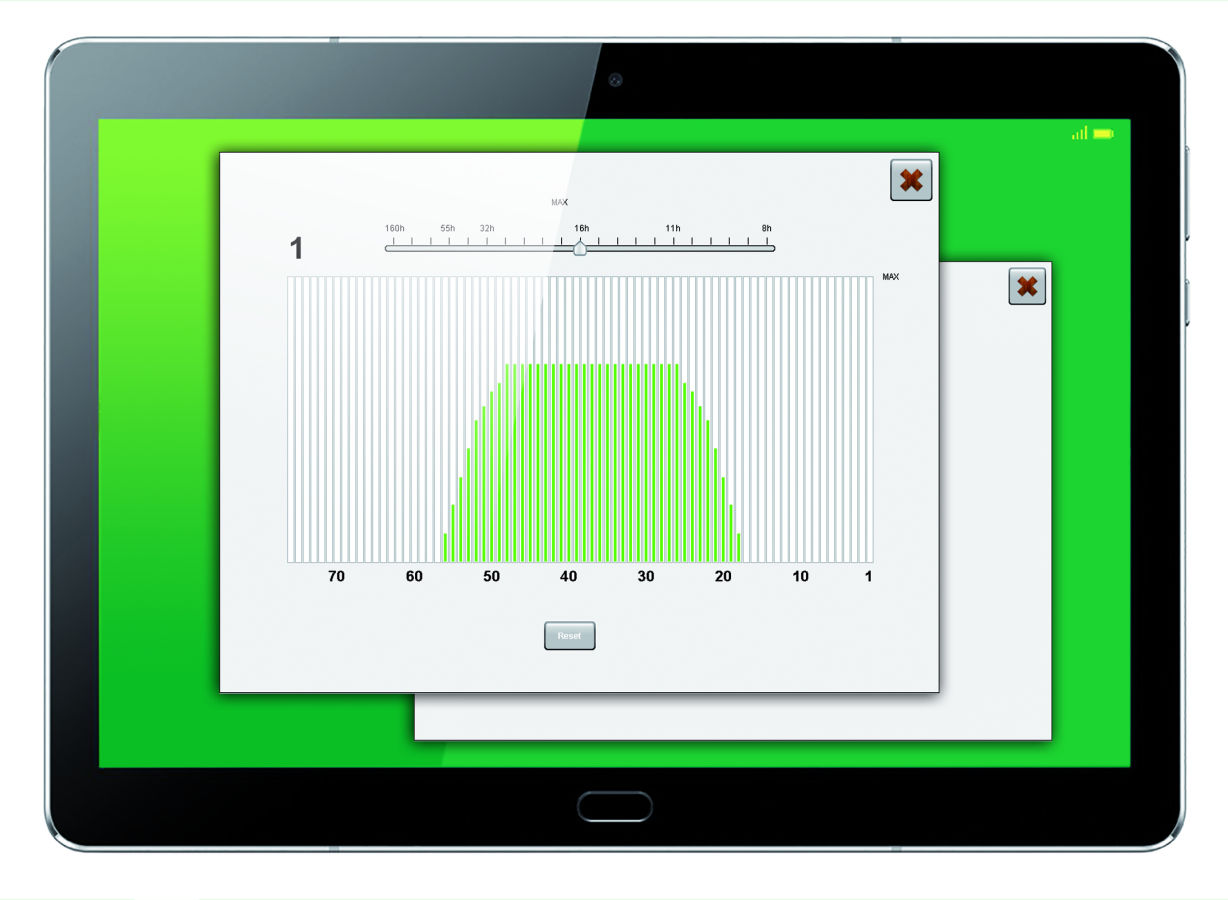

| Additional functions | Grit-set (grit compensation), Teleservice (remote assistance) |
- Exceptional flexibility: the ability to choose a configuration with 2 to 4 operating units allows creating a tailored solution perfectly suited for specific production tasks.

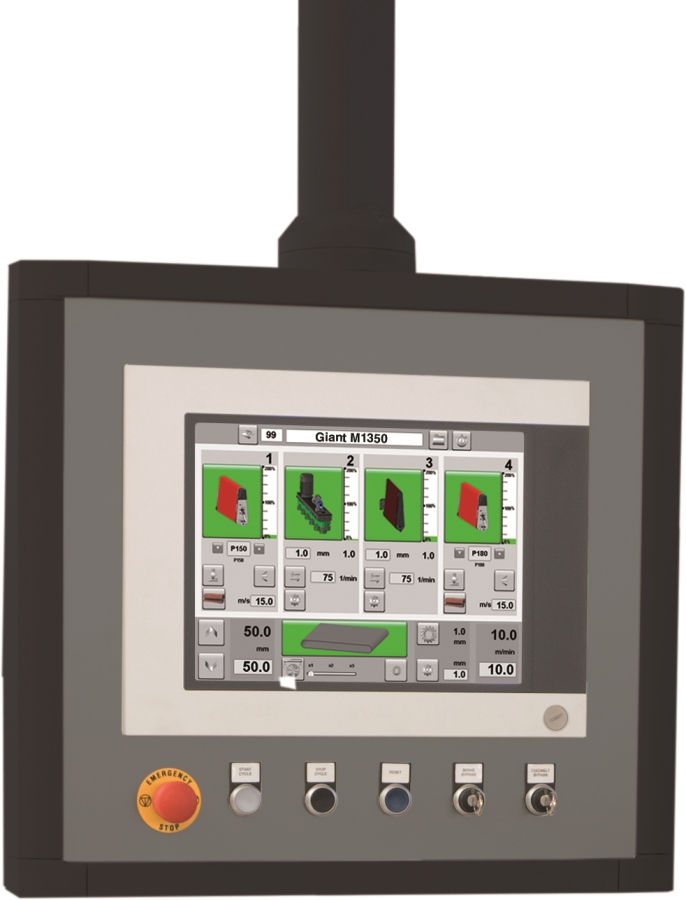

- Modern control and support: a 15-inch touchscreen display ensures ease of operation, while the built-in Teleservice system enables engineers to provide remote real-time support.
- Increased tool life and quality: the use of extra-long abrasive belts with a length of 2620 mm guarantees long tool life and consistently high surface finishing quality.
- Ease of integration: a fixed worktable height (900 mm) and a wide range of working widths (up to 2200 mm) allow machines to be easily integrated into existing automated production lines.
- Comprehensive processing: the equipment effectively handles a full cycle of operations — from slag removal and edge rounding to final satin finishing of steel and aluminum parts.
EMC is a recognized Italian expert from Imola, creating intelligent systems for precision metal finishing under the "Made in Italy" quality mark. Guided by the motto "Elevate your finishing touch", the company perfects parts made of any materials — from steel to innovative alloys. The brand's innovative spirit is embodied in patented orbital systems and compact "all-in-one" concepts that combine industrial power with the simplicity of touch control. EMC acts as a modern technological partner, guaranteeing flawless processing results and providing prompt remote support to its clients.
