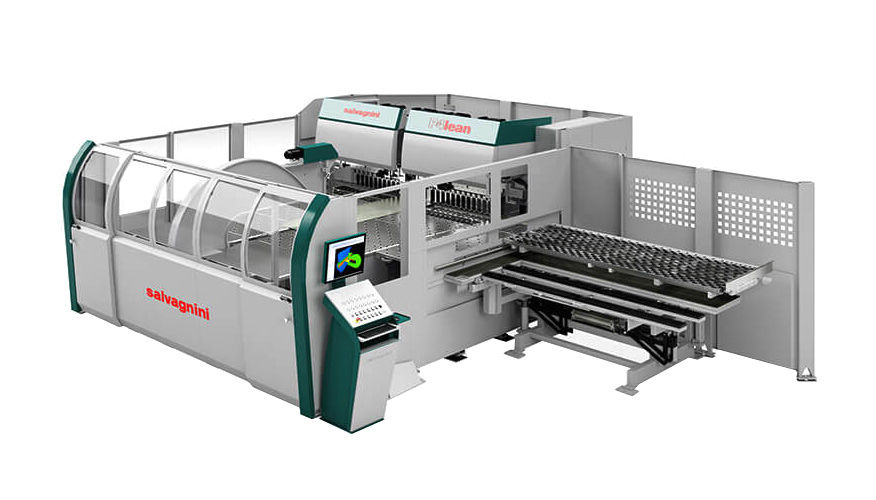

Salvagnini P4 - 3220
Automated solution for high-precision bending of long panels, designed to increase competitiveness by reducing cycle time.
Adaptive system
The integrated adaptive technologies (advanced sensors, Bending Formula, MAC3.0) make the system intelligent and able to automatically adapt to changes in the material and the external environment, eliminating waste and corrections, and extending the range of products that can be made.
Production versatility
It offers customized solutions, including auxiliary tools and additional devices for special geometries or different loading/ unloading solutions.
Flexible automation
It uses universal bending tools which automatically adapt in-cycle to the panel geometry, without machine down times or manual re-tooling, allowing batch-one or kit productions.
Connectivity 4.0
The proprietary LINKS and OPS software establish communication between the system and the company departments involved in the production flow.
The integrated adaptive technologies (advanced sensors, Bending Formula, MAC3.0) make the system intelligent and able to automatically adapt to changes in the material and the external environment, eliminating waste and corrections, and extending the range of products that can be made.
Production versatility
It offers customized solutions, including auxiliary tools and additional devices for special geometries or different loading/ unloading solutions.
Flexible automation
It uses universal bending tools which automatically adapt in-cycle to the panel geometry, without machine down times or manual re-tooling, allowing batch-one or kit productions.
Connectivity 4.0
The proprietary LINKS and OPS software establish communication between the system and the company departments involved in the production flow.
Sustainable technology
The technical solutions adopted (Direct Drive and pneumatic and electric actuators) allow it to respect both people and the environment without reducing its productivity.
| Maximum length of incoming sheet [mm] | 3850 |
| Maximum width of incoming sheet [mm] | 1524 |
| Maximum diagonal that can be rotated [mm] | 4000 |
| Maximum bending force [kN] | 660 |
| Maximum clamping force [kN] | 1060 |
| Maximum bending length [mm] | 3200 |
| Maximum bending height [mm] | 203 |
| Minimum thickness [mm] | 0.4 |
| Maximum thickness and bending angle steel, UTS 410 N/mm2 [mm] | 3.2 (±90°) 2.5 (±130°) 2.1 (±135°) |
| Maximum thickness and bending angle stainless steel, UTS 660 N/mm2 [mm] | 2.5 (±90°) 2.1 (±125°) 1.6 (±135°) |
| Maximum thickness and bending angle aluminium, UTS 265 N/mm2 [mm] | 4.0 (±120°) 3.5 (±130°) 3.0 (±135°) |
