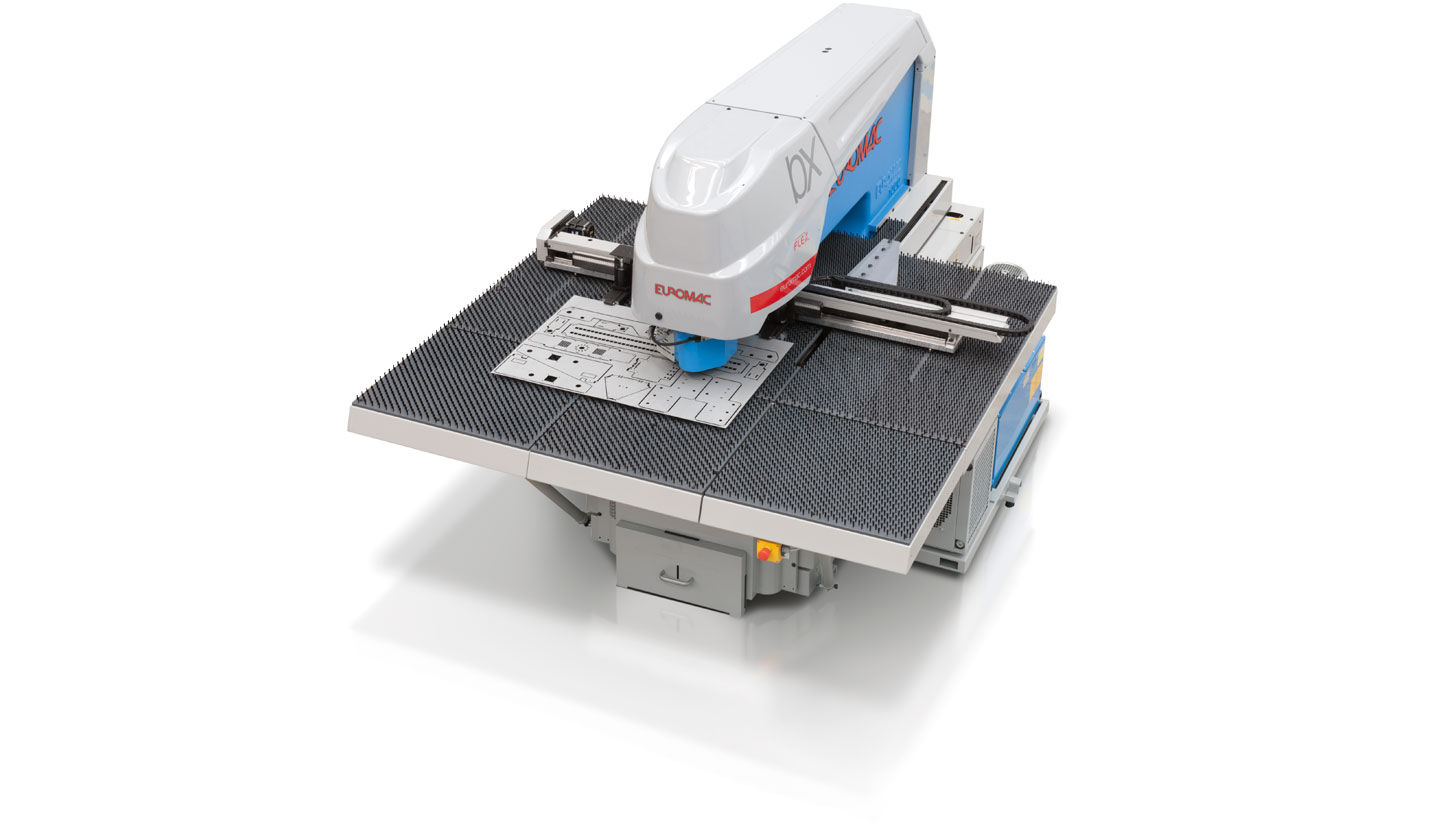

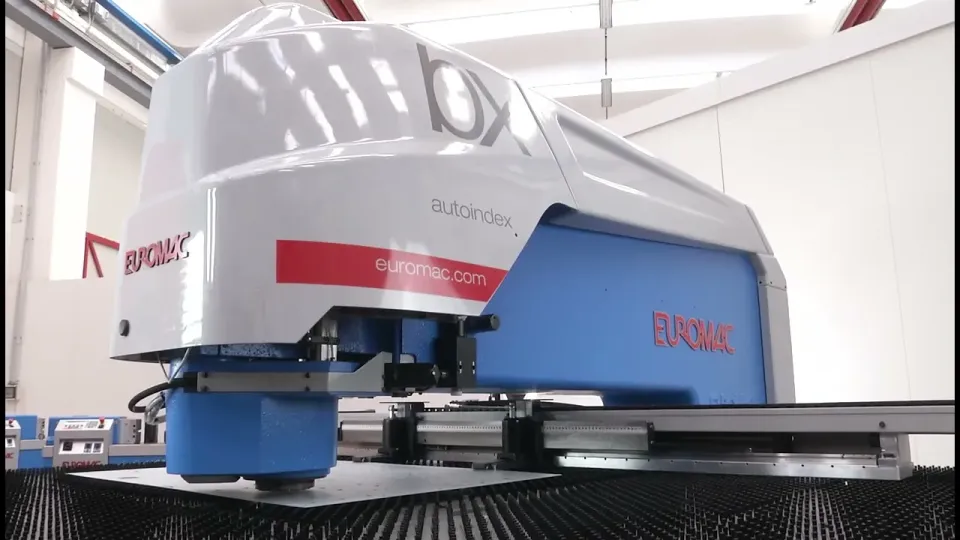

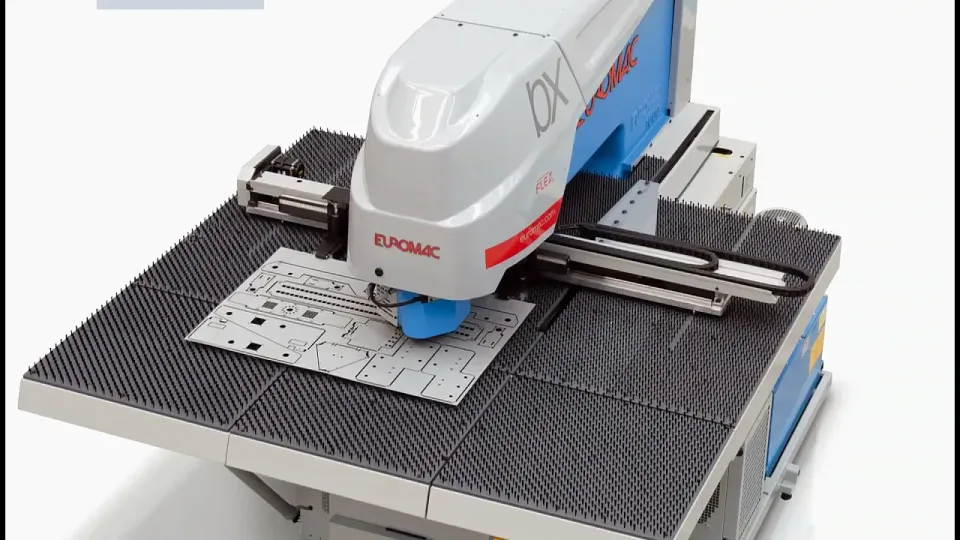

Euromac BX Plus Autoindex 1250/30-2500

The differences between the models of the BX Plus Autoindex series lie in the size of the workable sheet, while all versions specialize in working with materials of increased thickness. This heavy-duty equipment is capable of punching steel sheets up to 11 mm thick (and up to 12.5 mm for copper or aluminum), which is an outstanding indicator in its class. The ultra-strong monobloc frame made of Meehanite® cast iron (resistance 700 N/mm²) provides exceptional stability and vibration damping even under maximum loads. The Autoindex system gives complete freedom of tool rotation, allowing complex cutouts at any angle with consistent accuracy of +/- 0.05 mm. BX Plus is uncompromising reliability for workshops where the priority is working with heavy sheets (weighing up to 150 kg) and maximum punching force.

Max. punching force (kN)	300
Y axis with Multitool /Monoounch (mm)
Y = 1000
Y = 1250	1250 / 1300
Positioning accuracy (mm)	+/- 0.05
Opening of clamps (mm) - standard	11
Max. hit rate (1/min):
Punching with 20 mm pitch	250
Nibbling with 1 mm pitch	550
Thickness range (mm)	0.6-11
Max. thickness (mm) with standard clamps	11
Max. thickness (mm) with op. clamps 13 mm (for copper / aluminium)	12.5
Max. weight at reduced axis speed (kg)	150*
USB port	6
Installed power (kW)	8.5
Approx, weight (kg)
X = 2250	7900
X = 2500	8500
Overall dimensions (mm)
X = 2250	3980 x 3630
X = 2500	4850 x 3630
* for sheets of over 50 kg weight combined brush and balls tables are required
