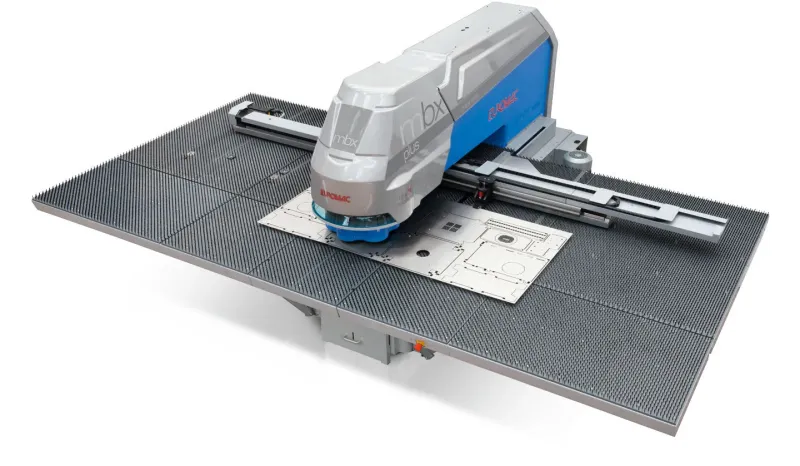

Euromac MBX Plus 6 1250/30-2250

The MBX Plus series is a reliable and high-speed "workhorse" for production, designed for rapid punching and forming of metal components. The machine achieves a high speed of 600 strokes per minute while maintaining perfect accuracy thanks to its heavy-duty Meehanite® cast iron frame. The innovative AutoIndex direct drive system contains fewer mechanical parts, making the machine more durable and significantly reducing maintenance costs. Its flexible configuration allows for up to 60 tools, turning this affordable machine into a complete metalworking complex.

Max. punching force (kN)	300
Y axis with Multitool /Monoounch (mm)
Y = 1250	1300/1250
X axis (mm)	2250
Automatic repositioning in X (mm)	up to 10000
Numerically control stroke depht (mm)	not available
Precision in forming repeatability (mm)	+/- 0.1
Bidirectional Autoindex stations	3
Opening of clamps (mm)	11
Automatic positioning clamps	2
Max. hit rate (1/min - 1 mm stroke):
Punching with 20 mm pitch	300
Nibbling with 1 mm pitch	625
Thickness range (mm)	0.6-6
Max. weight at reduced axis speed (kg)	150*
USB port	6
Installed power (kW)	8.5
Average consumption (kW/h)	4.5
Approx, weight (kg)	8400
Overall dimensions (mm)	3990 x 3630
* for sheets of over 50 kg weight combined brush and balls tables are required

Euromac — a recognized expert in developing technologies that take sheet metal processing optimization to a fundamentally new level. Following its mission to bring any partner's ambitions to life, the brand creates intelligent systems for full control and transparency of all production cycles. The entire journey from design to assembly takes place exclusively in Italy, allowing the company to combine benchmark reliability with innovations that open new opportunities for businesses worldwide.
