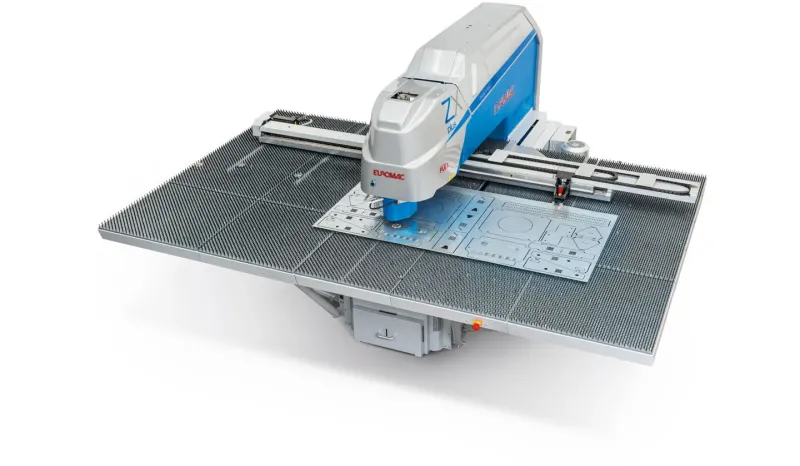

Euromac ZX Plus Flex Hybrid 1250/30-2500
High-speed machine with a single universal head, using hybrid power for maximum precision in parts manufacturing.
The ZX Plus Flex Hybrid series consists of high-precision machines with a single universal head, perfectly suited for high-speed marking and the production of parts with the highest quality requirements. The use of the FLEX system gives the operator full control over every movement of the tool, allowing software-based adjustment of speed and acceleration for working with any type of material. In marking mode, the machine operates at a phenomenal speed of 2,000 hits per minute, instantly applying logos or technical information to products. The universal "D" type station allows for instantaneous switching between large single tools (up to 88.9 mm) and Multitool units.
| Max. punching force (kN) | 300 |
| Y axis with Multitool / Monoounch (mm) | 1300 / 1250 |
| X axis (mm) | 2500 |
| Automatic repositioning in X (mm) | up to 10000 |
| Numerically control stroke depht (mm) | from 0.1 to 31 |
| Hydraulic servomotor controlled system | standard |
| Position accuracy (mm) | +/- 0.05 |
| Precision in forming repeatability (mm) | +/- 0.1 |
| Bidirectional “D” Autoindex stations | 1 |
| Opening of clamps (mm) | 11 |
| Automatic positioning clamps | 2 |
| Max. hit rate (1/min): | |
| Punching with 20 mm pitch | 375 |
| Nibbling with 1 mm pitch | 1000 |
| Marking | 2000 |
| Thickness range (mm) | 0.6-6 |
| Max. thickness (mm) with op. clamps 13 mm (for copper / aluminium) | 12.5 |
| Max. weight at reduced axis speed (kg) | 150* |
| USB port | 6 |
| Installed power (kW) | 8.5 |
| Average consumption (kW/h) | 4.5 |
| Approx, weight (kg) | 8300 |
| Overall dimensions (mm) | 4850 x 3630 |
| * for sheets of over 50 kg weight combined brush and balls tables are required | |
Euromac — a recognized expert in developing technologies that take sheet metal processing optimization to a fundamentally new level. Following its mission to bring any partner's ambitions to life, the brand creates intelligent systems for full control and transparency of all production cycles. The entire journey from design to assembly takes place exclusively in Italy, allowing the company to combine benchmark reliability with innovations that open new opportunities for businesses worldwide.
