Euromac Fx Bend Cell 1023-1547 PLUS
The robotic complex is designed for the automatic bending of small and medium-sized metal parts, relieving humans of heavy routine work.
The line of Euromac automated bending centers offers fully integrated solutions combining high-precision electric press brakes, multi-axis robots, and intelligent software. These systems are designed to ensure maximum productivity when processing parts of any size, offering flexible customization for the specific production tasks of each client.
Full integration "from a single source"
Euromac independently develops every element of the structure — from press mechanics and robot integration to control software, guaranteeing perfect compatibility, reliability, and ease of system operation.
Euromac independently develops every element of the structure — from press mechanics and robot integration to control software, guaranteeing perfect compatibility, reliability, and ease of system operation.
Ultra-fast programming
Specialized Fx Cell 3D software allows for offline robot setup in minimal time, significantly reducing equipment downtime when switching to new products.
Specialized Fx Cell 3D software allows for offline robot setup in minimal time, significantly reducing equipment downtime when switching to new products.
Flawless precision and repeatability
The unique "Active Fingers" technology with a self-learning function, combined with precision angle control, guarantees consistent bending quality for every part in a series.
The unique "Active Fingers" technology with a self-learning function, combined with precision angle control, guarantees consistent bending quality for every part in a series.
Maximum operational autonomy
Automatic tool and gripper change systems, along with the option to install 10-pallet vertical warehouses, allow the complex to operate for long periods with virtually no operator involvement.
Automatic tool and gripper change systems, along with the option to install 10-pallet vertical warehouses, allow the complex to operate for long periods with virtually no operator involvement.
Versatile loading and unloading
The modular design offers numerous solutions for workpiece flows — from perforated pre-alignment tables to motorized roller conveyors and box sorting systems.
The modular design offers numerous solutions for workpiece flows — from perforated pre-alignment tables to motorized roller conveyors and box sorting systems.
| Technical data | cell 1023 | cell 1547 |
| Max. bending force (kN) | 230 | 470 |
| Bending length (mm) | 1020 | 1530 |
| Daylight opening | ||
| Wila clamping (die holder - to punch holder) (mm) | 315 | 360 |
| Promecam clamping (die holder - to ram) (mm) | 395 | 440 |
| Y axes stroke (mm) | 196 | 240 |
| Y axes speed (mm/sec) | 200 | 200 |
| Max. bending speed automatic mode (mm/sec) | 36 | 36 |
| Max. bending speed manual mode (mm/sec) | 10 | 10 |
| Robot | ||
| Max. reach (mm) | 1420 / 1810 | 1420 / 1810 |
| Max. payload with gripper (kg) | 10 / 20 | 10 / 20 |
| Number of axes | 6 | 6 |
| Pose repeatability (mm) | +-0.03 | +-0.03 |
| FX Cell | ||
| Loading | ||
| Minimum parts dimension (mm) | 50 x 100 | 50 x 100 |
| Maximum stack height (mm) | 300 | 300 |
| Unloading | ||
| Belt conveyor buffer length (mm) | 1500 / 3000 | 1500 / 3000 |
| Area for gravity unloading (mm) | 1200 x 800 | 1200 x 800 |
| Connected load (kVA) | 5 | 6 |
| Approx. weight (kg) | 3000 | 5500 |

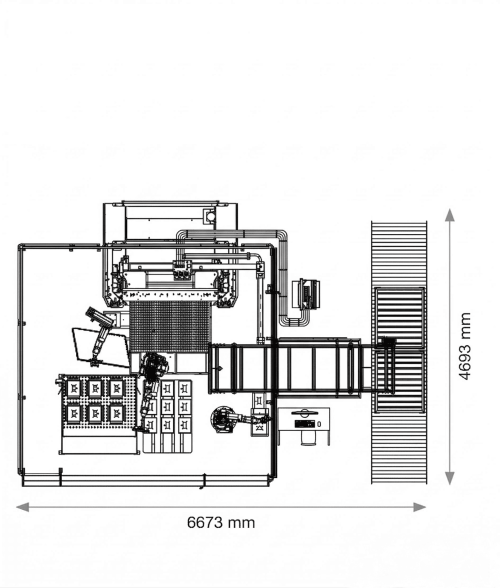

Robotic Cell for Small and Medium Sized Pieces
High production capacity and compact design.
This cell is designed for processing small and medium-sized parts with maximum throughput. The system includes:
-
Fx Bend Press Brake with a 6-axes backgauge.
-
Robot: payload options of 20, 70, or 120 kg.
-
Integrated Base: The robot's base is built into the machine for space-saving and stability.
-
Centering Table for precise part positioning.
-
Turnover System for automatic part reorientation.
-
Double Part Control to prevent picking errors.
-
Loading Station with 2 tables of 1200 x 800 mm.
-
Unloading:
-
Palletization on a Europallet.
-
Automatic belt conveyor together with motorized roller conveyor for multi boxes.
-
Located in the heart of Italy, Euromac embodies the finest traditions of European quality, transforming decades of experience into cutting-edge engineering solutions. The manufacturer embraces a philosophy of absolute responsibility for the final result, independently designing and developing every single component of its systems — from complex software code to the smallest mechanical units. By combining flawless assembly reliability with Industry 4.0 concepts, Euromac creates an intelligent environment for modern business, where innovation and ease of use are in perfect balance.
