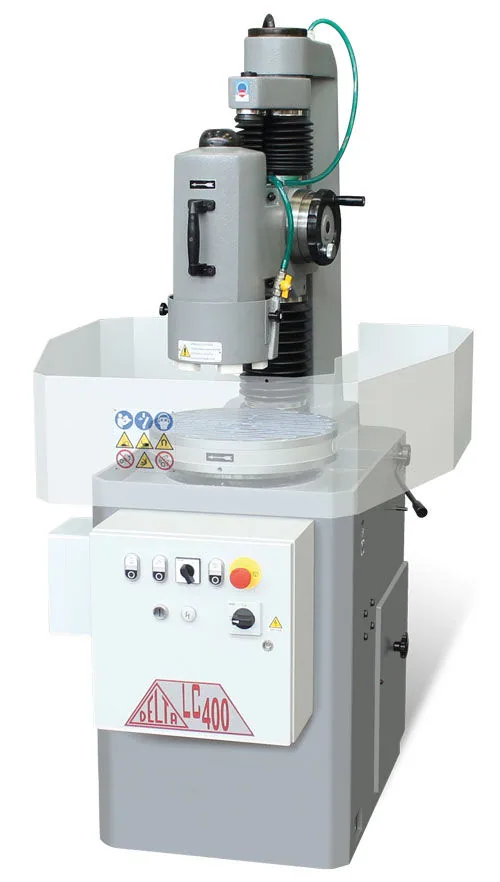

Delta Elle LC400
A rotary table grinding machine for high-precision leveling of discs, flanges, and other circular metal parts requiring perfect flatness.
- Maximum Structural Rigidity: The bed and main machine components are cast from certified high-quality cast iron with increased wall thickness and special reinforcing ribs, guaranteeing absolute structural stability and zero vibration during operation.
- Proprietary Precision Spindle: The grinding head is equipped with a proprietary Delta electro-spindle, built with high-precision bearings and subjected to mandatory dynamic balancing using modern electronic equipment.
- Ideal Geometry and Micrometric Precision: Special adjustment devices ensure strict perpendicularity of the head relative to the worktable. Rapid vertical feed is provided for fast operation, while a convenient detent dial allows easy micrometric fine-tuning down to 0.01 mm precision.
- Versatile Configurations for Any Task: Within a single series, the brand offers a choice of five models with three types of worktables — fixed, rotating round, or a unique synchronized tilting table.
- Decades of Proven Quality: Since manufacturing its first vertical machines in 1955, Delta has delivered over 20,000 equipment units worldwide, earning a reputation as a market leader and winning gold medals for technological progress.
| Parameter | Value |
|---|---|
| Worktable type | Rotary (round) |
| Distance between column axis and grinding wheel axis | 315 mm |
| Max. distance from magnetic chuck (standard) to wheel | 205 mm |
| Max. distance from table surface to wheel | not applicable |
| Max. grinding area | ø 400 mm |
| Electromagnetic chuck diameter (available options) | 300 and 400 mm |
| Rapid feed per handwheel revolution | 2 mm |
| Micrometric feed via pawl (dial) | 0.01 mm |
| Cup grinding wheel dimensions | 200 x 80 x 78 mm |
| Abrasive segment dimensions | 50 x 20 x 90 mm |
| Grinding wheel speed | 2840 rpm |
| Table rotation speed (standard) | 20 and 40 rpm (two-speed motor) |
| Table rotation speed (with optional L13 variator) | from 2 to 30 rpm |
| Spindle motor power (grinding wheel) | 3 kW / 4 hp |
| Rotary table motor power | 0.33–0.48 kW / 0.45–0.65 hp |
| Coolant pump motor power | 0.06 kW / 0.08 hp |
| Machine weight | 680 kg |
| Overall machine dimensions (L x W x H) | 1050 x 950 x 1750 mm |
