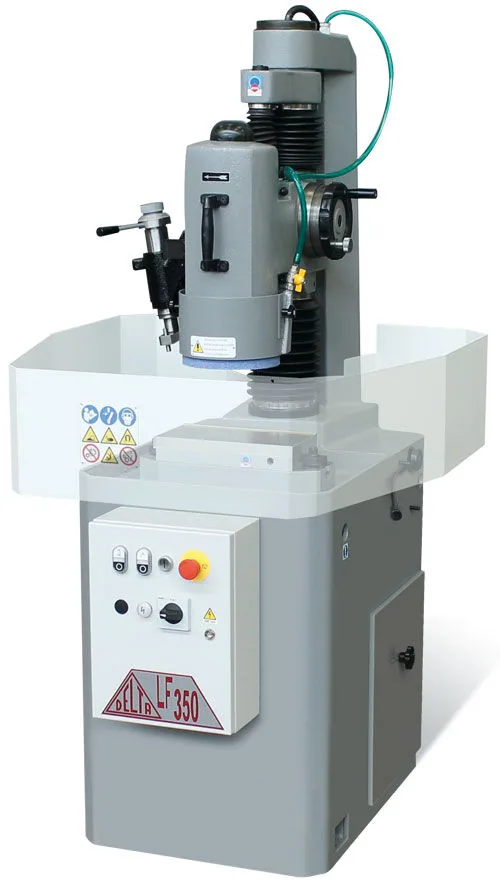

Delta Elle LF350
Grinding machine for quick leveling of metal surfaces and regular sharpening of worn industrial tools in workshops and production facilities.
- Maximum Structural Rigidity: The bed and main machine components are cast from certified high-quality cast iron with increased wall thickness and special reinforcing ribs, guaranteeing absolute structural stability and zero vibration during operation.
- Proprietary Precision Spindle: The grinding head is equipped with a proprietary Delta electro-spindle, built with high-precision bearings and subjected to mandatory dynamic balancing using modern electronic equipment.
- Ideal Geometry and Micrometric Precision: Special adjustment devices ensure strict perpendicularity of the head relative to the worktable. Rapid vertical feed is provided for fast operation, while a convenient detent dial allows easy micrometric fine-tuning down to 0.01 mm precision.
- Versatile Configurations for Any Task: Within a single series, the brand offers a choice of five models with three types of worktables — fixed, rotating round, or a unique synchronized tilting table.
- Decades of Proven Quality: Since manufacturing its first vertical machines in 1955, Delta has delivered over 20,000 equipment units worldwide, earning a reputation as a market leader and winning gold medals for technological progress.
| Parameter | Value | |
|---|---|---|
| Table type | Fixed | |
| Distance between column axis and grinding wheel axis | 315 mm | |
| Maximum distance from table surface to wheel | 280 mm | |
| Maximum distance from magnetic table to wheel | not applicable | |
| Maximum grinding area | 155 x 360 mm | |
| Rapid feed per handwheel revolution | 2 mm | |
| Micrometric feed using pawl (dial) | 0.01 mm | |
| Cup grinding wheel size | 200 x 80 x 78 mm | |
| Abrasive segment dimensions | 50 x 20 x 90 mm | |
| Wheel rotation speed | 2840 rpm | |
| Spindle (grinding wheel) motor power | 3 kW / 4 hp | |
| Coolant pump motor power | 0.06 kW / 0.08 hp | |
| Machine weight | 550 kg | |
| Overall machine dimensions (L x W x H) | 1050 x 950 x 1750 mm |
