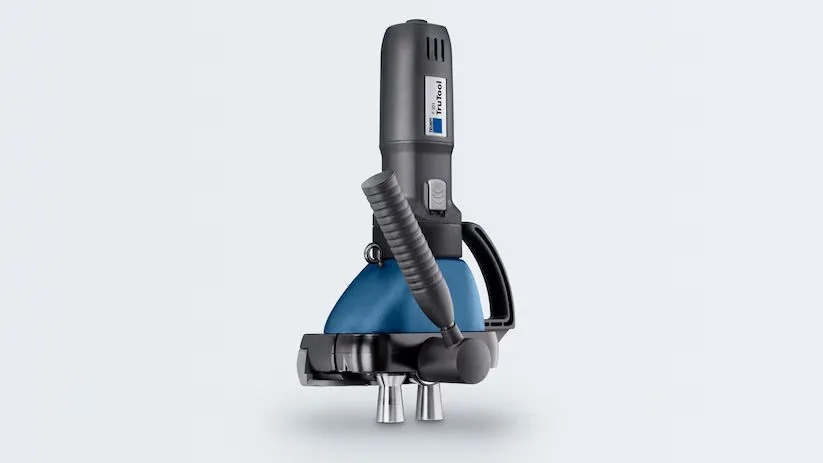

TRUMPF TruTool F 301
The TruTool F 301 seam locker is the perfect choice if you process sheet thicknesses of 0.45–1 mm in mild steel. For straight or curved ducts.
Simple closing of ducts in thin sheet range
With the TruTool F 301, you can close Pittsburgh seams effortlessly on straight or curved ducts with sheet thicknesses of 0.18 in. - 0.04 in. for mild steel. There is no need for refitting when processing formed or folded pieces. The adjustment to the sheet thickness is automatic and the forward feed guarantees a consistent and tight seam.Easy to use
With the TruTool F 301 you can close formed or folded pieces without refitting the machine.Flange height and sheet thickness
Suitable for flange heights of 8 mm – 11 mm and for sheet thicknesses of 0.45 – 1 mm.Excellent process reliability
Automatic adjustment to the sheet thickness gives you consistent seam results.Area of application
With the TruTool F 301, you can close seams on straight and curved ducts.| Maximum sheet thicknesses | |
| Maximum sheet thickness, steel 400 N/mm² (minimum) | 0.45 mm |
| Maximum sheet thickness, steel 400 N/mm² (Maximum) | 1 mm |
| Flange height (B) | |
| Flange height (B) with sheet thickness 0.45 - 1.0 | 8 mm - 11 mm |
| Radii | |
| Smallest inner radius (preformed) | 150 mm |
| Smallest outer radius | 300 mm |
| General | |
| Working speed (max.) | 7 m/min |
| Nominal power consumption | 550 W |
| Dimensions | |
| Length | 285 mm |
| Height | 356 mm |
| Weight | |
| Weight | 5.2 kg |
