H-beam production

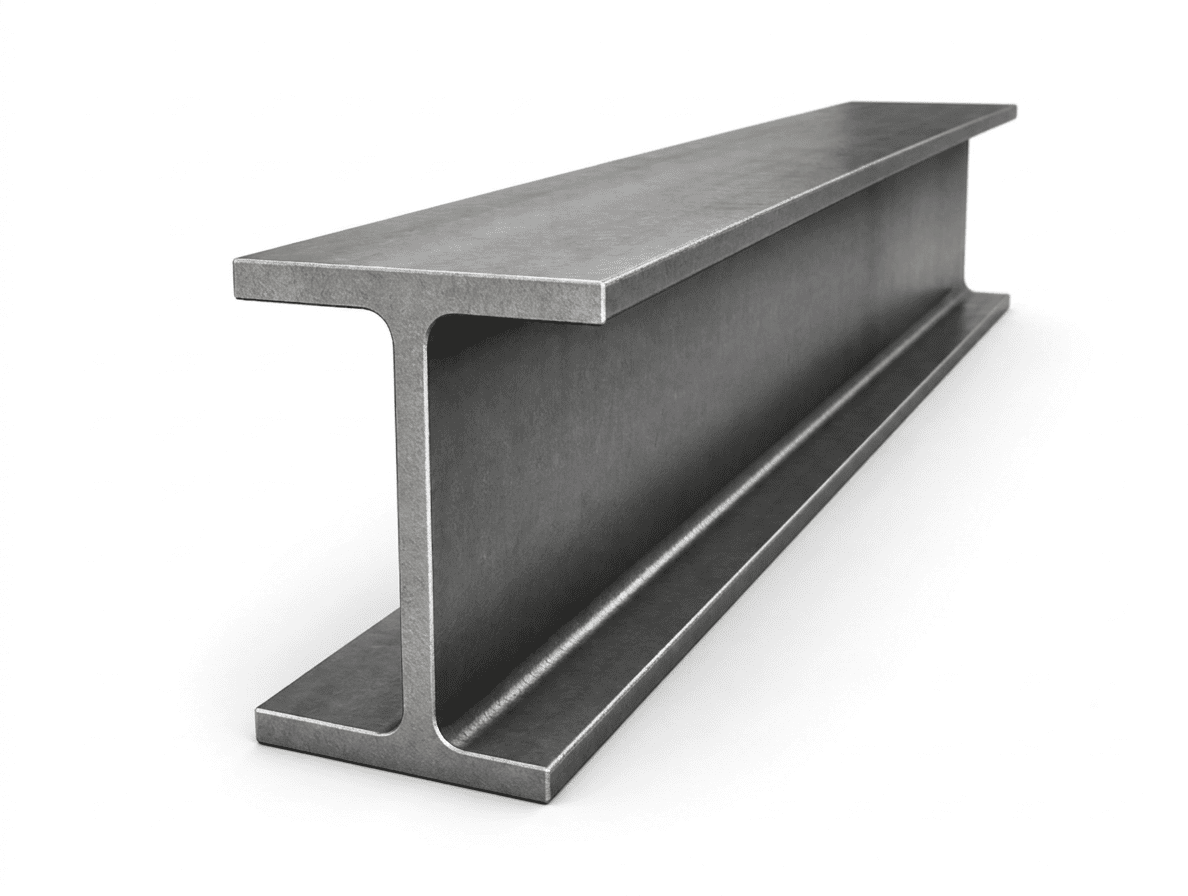

Automated line for the production of heavy metal structures is a modern solution for the manufacture of I-beams (H-profile), designed to minimize the use of overhead cranes.

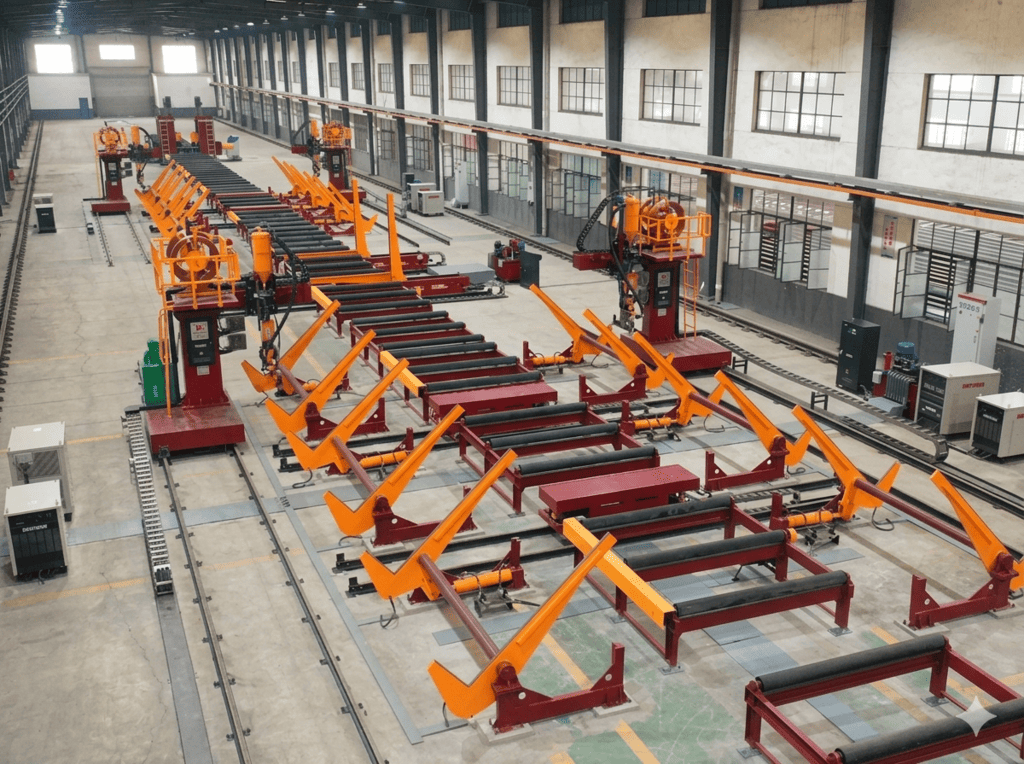

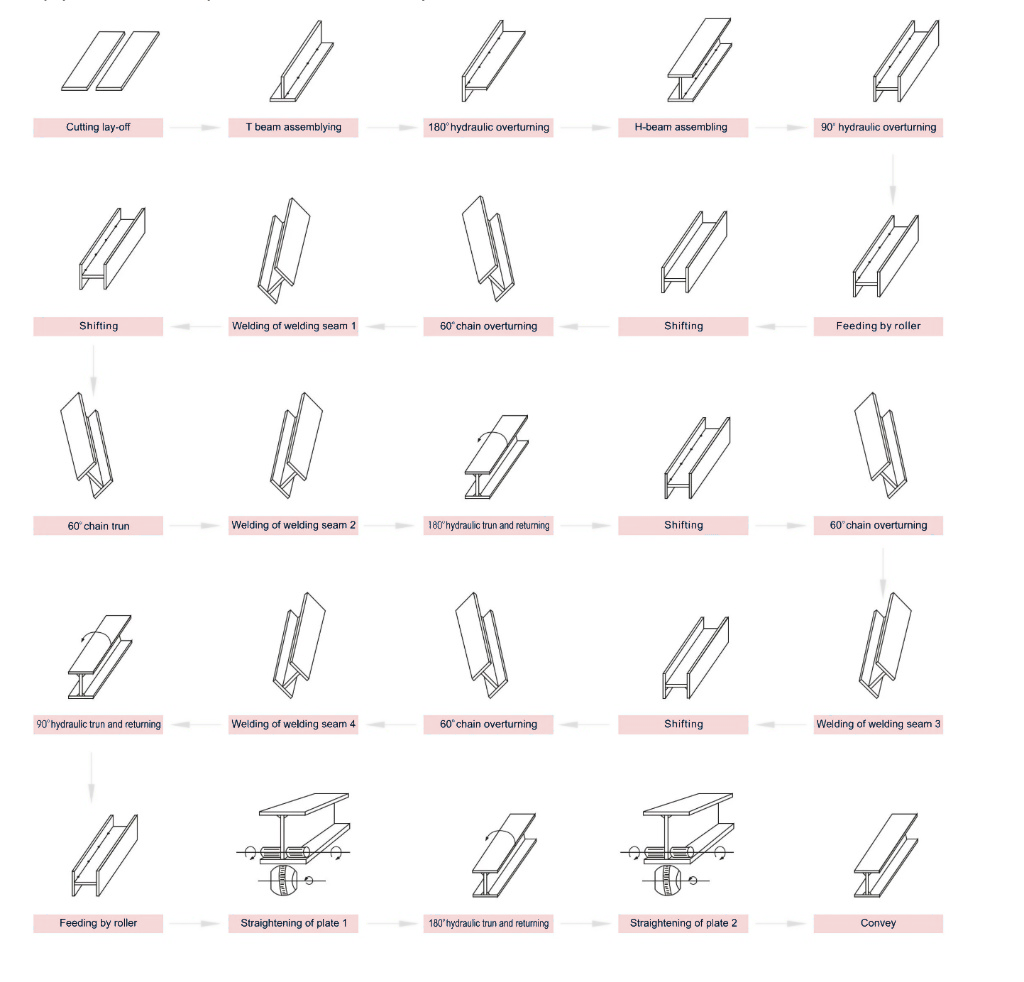

Automated H-beam production line — is a high-tech solution for the manufacturing of heavy steel structures. The system integrates transport, positioning, and welding processes, minimizing manual labor and the use of workshop cranes. Thanks to the integration of roller conveyors, turning devices, and steel displacement mechanisms, the line ensures a continuous production cycle of the H-beam profile.
- High degree of automation and productivity: The use of automated equipment for moving and flipping beams during the welding process significantly increases production efficiency.
- Reduced dependency on crane equipment: The design of the line is specifically engineered to reduce the frequency of overhead crane usage, freeing them for other tasks and improving workshop safety.
- Flexibility of technical parameters: The line is capable of working with a wide range of product dimensions:
- Beam web height: from 200 to 2000 mm.
- Flange width: from 200 to 1000 mm.
- Metal thickness: up to 60 mm for the web and up to 80 mm for the flange.
- Processing of large-scale structures: Ability to handle workpieces with a length up to 15,000 mm.
- Comprehensive "turnkey" solution: The manufacturer provides a full range of equipment, including assembly machines (both light and heavy series), cantilever-type welding machines, flange straightening machines, and shot blasting installations.
| Parameter | Value |
| Web height | 200–2000 mm |
| Web thickness | 6–60 mm |
| Flange width | 200–1000 mm |
| Flange thickness | 6–80 mm |
| Workpiece length | 15000 mm |
