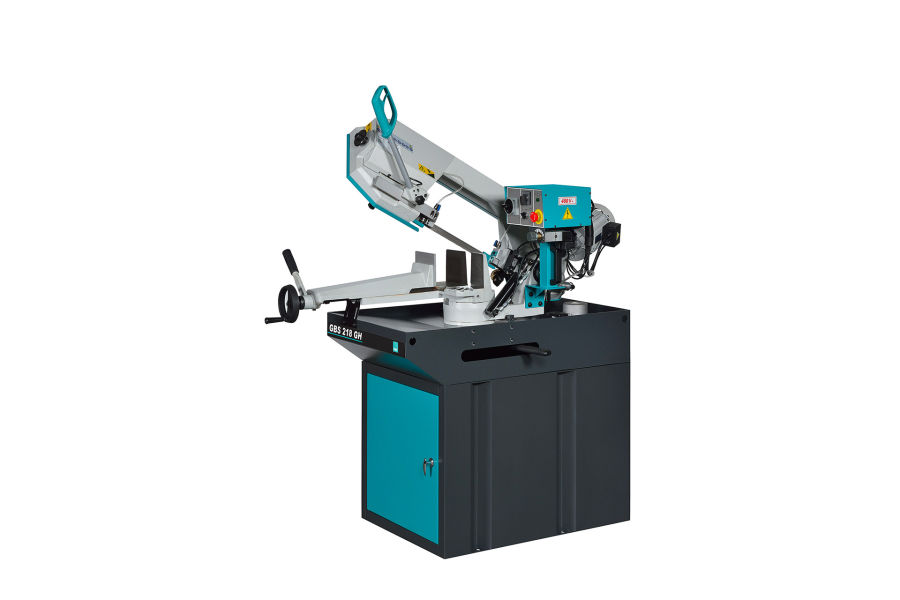

IMET GBS 218GH
Gravity band saw for tubes and profiles .
GBS 218 GH is the IMET controlled descent sawing machine. Versatile and easy to use, GBS 218 GH is ideal for small and medium series mechanical productions and for small and medium carpentry. The machine makes angled cuts up to 60 ° to the left.
Working area
GBS 218 GH has a large working area with rotation integral with the bow designed to avoid incisions on the same on a ball bearing for easy rotation.
Vice
The vice with adjustable guides, sliding transversely on the work surface and quick approach to the cutting material.
Blade guides
The blade guide of the GBS 218 GH are equipped with carbide inserts and additional front bearings for optimal blade alignment.
Blade
The bimetal blade has a size of 2455x27x0.9mm with a speed of use between 30 and 70 meters per minute making it the ideal tool for processing steel and cast iron.
Autonomous cut
The controlled descent system is equipped with automatic operation with a 3-position selector for:
Manual cutting
Quick approach to the material
Automatic cut with autonomous descent, adjustable stop and end cut microswitcht.
GBS 218 GH has a large working area with rotation integral with the bow designed to avoid incisions on the same on a ball bearing for easy rotation.
Vice
The vice with adjustable guides, sliding transversely on the work surface and quick approach to the cutting material.
Blade guides
The blade guide of the GBS 218 GH are equipped with carbide inserts and additional front bearings for optimal blade alignment.
Blade
The bimetal blade has a size of 2455x27x0.9mm with a speed of use between 30 and 70 meters per minute making it the ideal tool for processing steel and cast iron.
Autonomous cut
The controlled descent system is equipped with automatic operation with a 3-position selector for:
Manual cutting
Quick approach to the material
Automatic cut with autonomous descent, adjustable stop and end cut microswitcht.
| Specification | Details |
|---|---|
| Cutting Capacity at 0° | Round: 220 mm, Square: 210 mm, Rectangle: 230 x 185 mm |
| Cutting Capacity at 45° Left | Round: 150 mm, Square: 150 mm, Rectangle: 150 x 210 mm |
| Cutting Capacity at 60° Left | Round: 90 mm, Square: 90 mm, Rectangle: 90 x 100 mm |
| Blade Size | 2455 x 27 x 0.9 mm |
| Blade Motor | 1.2 kW |
| Blade Speed | 35 / 70 m/min |
| Height of the Work Surface | 900 mm |
| Weight | 255 kg |
| Dimensions | 680 x 1400 x 1800 mm |
