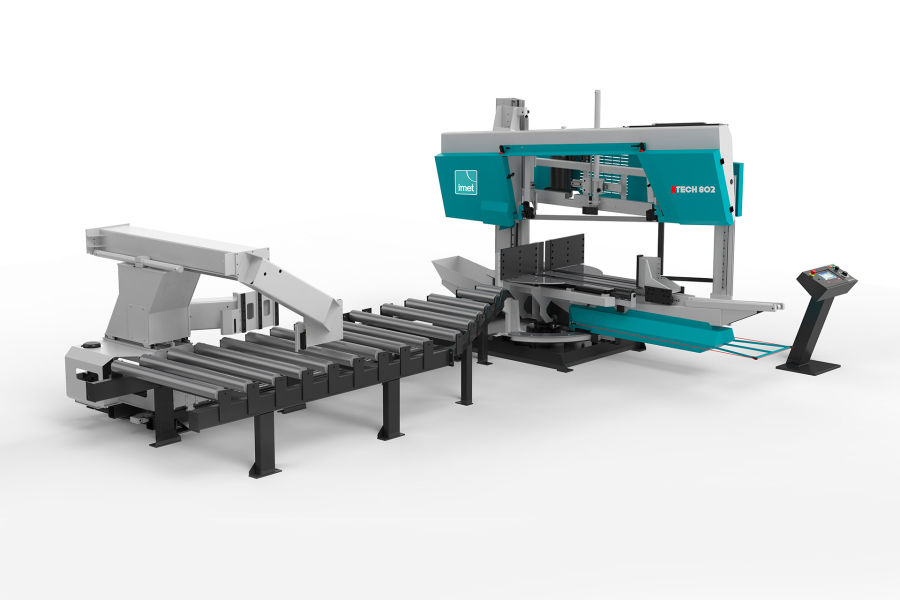

IMET KTECH 802 F6000
KTECH 802 is an automatic double column bandsaw suitable to cut bars, tubes, solids and profiles up to 60° both on left and right.An automatic sawing machine with CNC managed feeder and sawframe movement, KTECH has 10" touch screen display to manage the cutting process. The perfect working tool for professionals, big size production and industry application.
10" touch screen display
KTECH 802 has an easy and intuitive interface dedicate to optimize the user-experience: thanks the CNC system and 10" touch screen display the user can manage all the machine operative function, set up 99 cutting program and multiple cutting length on the same bar, set the number of feeder stroke, the number of pieces and blade speed. It's also possibile to do an autodiagnostic to detect errors.
CNC managed axes system
KTECH line automatic bandsaws have a CNC managed axes system (3 both for 802 and 1202 models: vice closing, material feeding and sawframe rotation) that can be set and controlled by touch screen (and SAWFACTORY).
Sawframe
The electrowelded sawframe structure developed by our technicians has big thickness and allows to avoid vibrations and noise while working. Band pulleys are supported throught big size bearings with metal plate to have the better allignment. Sawframe movement perfectly balanced by big diameter hydraulic cylinder and linear guides.
Precision and accuracy
IMET automatic and semiautomatic bandsaws uses an innovative angle measurement system located outside the machine center so that the angle precision and accuracy is always as high as possibile, even on left and right angular cuts.
Motorized sawframe rotation
IMET's KTECH and KS NC bandsaws has a CNC managed and motorized sawframe rotation system (where all the parameters can be set by touch screen display. Sawframe rotation is made possibile by an hydraulic cylinder.
Canted blade
To increase material penetration, avoid loweing slowdown and save blade life, KTECH machines have a 5° canted blade that helps to optimize the cutting process even on bigger and stroger profiles.
Blade tension
Blade tension is managed by a mechanic/hydraulic system. Ideal blade tension (which is 2000kg/cm2) can be set via touch screen display and machine software. If a breakage happens, Ktech software immediately stops the o process, allowing maintenance.
Blade guides
Hard metal blade guides with lateral guide cemented rolls, hardened and rectificated with easy regulation system. Mobile blade guides is auomatically kept next to the cutting area for a better blade allignment and highest precision.
Blade cleaning
An adjustable and mechanic motorized metal cleaning brush provides to remove residuals and remainings on the blade while cutting. Minimal lubrification is a standard equipend to avoid liquid dispersion that could affect the length measurement.
Vice
Horizontal vice with round jaws so that the material can be locked on every set angle. This design allows to lock the material as close as possible to the cutting line on both bar sides, easing the process on every angle. Jaws height is 370mm.
Integrated feeder
KTECH has an integrated feeder with integrated roller table, length 3000mm. Feeder movement and repetition are set via touch screen display. Cutting material is fullu supported by the roller table, while final scrap-end is 150mm.
Hydraulic unit and energy
Hydraulic unit of new design with new low noise pump and locking valves on all the movements, with vice pressure reducers. Most processes are carried out with switched off hydraulic unit that allows a considerable saving of energy and maintains low the oil temperature.
Standard lubrification system
Standard minimal lubrification keep the material dry, avoiding wastes. The system can work in 3 ways: always switched-on, switched-on only while cutting, switched-off. If the oli isn't enough, it's reported on the o machine display.
KTECH 802 has an easy and intuitive interface dedicate to optimize the user-experience: thanks the CNC system and 10" touch screen display the user can manage all the machine operative function, set up 99 cutting program and multiple cutting length on the same bar, set the number of feeder stroke, the number of pieces and blade speed. It's also possibile to do an autodiagnostic to detect errors.
CNC managed axes system
KTECH line automatic bandsaws have a CNC managed axes system (3 both for 802 and 1202 models: vice closing, material feeding and sawframe rotation) that can be set and controlled by touch screen (and SAWFACTORY).
Sawframe
The electrowelded sawframe structure developed by our technicians has big thickness and allows to avoid vibrations and noise while working. Band pulleys are supported throught big size bearings with metal plate to have the better allignment. Sawframe movement perfectly balanced by big diameter hydraulic cylinder and linear guides.
Precision and accuracy
IMET automatic and semiautomatic bandsaws uses an innovative angle measurement system located outside the machine center so that the angle precision and accuracy is always as high as possibile, even on left and right angular cuts.
Motorized sawframe rotation
IMET's KTECH and KS NC bandsaws has a CNC managed and motorized sawframe rotation system (where all the parameters can be set by touch screen display. Sawframe rotation is made possibile by an hydraulic cylinder.
Canted blade
To increase material penetration, avoid loweing slowdown and save blade life, KTECH machines have a 5° canted blade that helps to optimize the cutting process even on bigger and stroger profiles.
Blade tension
Blade tension is managed by a mechanic/hydraulic system. Ideal blade tension (which is 2000kg/cm2) can be set via touch screen display and machine software. If a breakage happens, Ktech software immediately stops the o process, allowing maintenance.
Blade guides
Hard metal blade guides with lateral guide cemented rolls, hardened and rectificated with easy regulation system. Mobile blade guides is auomatically kept next to the cutting area for a better blade allignment and highest precision.
Blade cleaning
An adjustable and mechanic motorized metal cleaning brush provides to remove residuals and remainings on the blade while cutting. Minimal lubrification is a standard equipend to avoid liquid dispersion that could affect the length measurement.
Vice
Horizontal vice with round jaws so that the material can be locked on every set angle. This design allows to lock the material as close as possible to the cutting line on both bar sides, easing the process on every angle. Jaws height is 370mm.
Integrated feeder
KTECH has an integrated feeder with integrated roller table, length 3000mm. Feeder movement and repetition are set via touch screen display. Cutting material is fullu supported by the roller table, while final scrap-end is 150mm.
Hydraulic unit and energy
Hydraulic unit of new design with new low noise pump and locking valves on all the movements, with vice pressure reducers. Most processes are carried out with switched off hydraulic unit that allows a considerable saving of energy and maintains low the oil temperature.
Standard lubrification system
Standard minimal lubrification keep the material dry, avoiding wastes. The system can work in 3 ways: always switched-on, switched-on only while cutting, switched-off. If the oli isn't enough, it's reported on the o machine display.
| Specification | Details |
|---|---|
| Cutting capacity at 90° | Round: 680mm Square: 640mm Rectangular: 820x610mm |
| Cutting capacity at 45° (left) | Round: 550mm Square: 550mm Rectangular: 550x580mm |
| Cutting capacity at 45° (right) | Round: 550mm Square: 550mm Rectangular: 550x580mm |
| Cutting capacity at 60° (left) | Round: 370mm Square: 370mm Rectangular: 370x450mm |
| Cutting capacity at 60° (right) | Round: 370mm Square: 370mm Rectangular: 370x450mm |
| Cutting capacity with bundle device | Max: 800x320mm Min: 80x80mm Scrap-end: 400mm |
| Cutting capacity at 90° (solid C45) | 350mm |
| Blade tension | 2000kg/cm² |
| Blade size | 7260x41x1.3mm |
| Blade speed | 18-100 m/min |
| Blade motor | 5.5KW |
| Feeder length | 6000mm |
| Minimum scrap end | 400mm |
| Cutting length | 6-9999mm |
| Size | 9000x3700x2700mm |
| Working height | 815mm |
| Weight | 6000kg |
