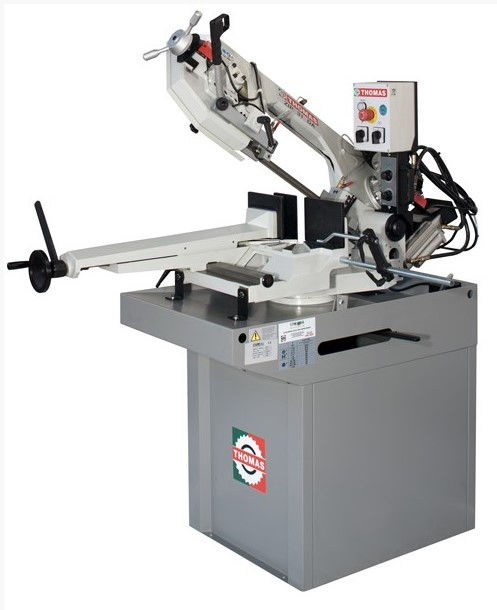

THOMAS ZIP 32 DA Gravity down feed bandsaw

Cutting cycle D.A. assisted downfeed system: automatic pull down with sawframe gravity down-feed controlled by hydraulic cylinder with adjustable speed.

Two ways miter cutting (from 0° to 45° left or 45° and 60° right).
Precision blade-guide with hard metal pads, bearings and anti-corosion treatement.
Two cutting speeds.

TECHNICAL FEATURES AND CUTTING CAPACITY
Machine bed in thick metal works exclusively made by domestic workshops. High level machining and finishing of the parts.
Vice and sawframe in cast-iron providing high stability and vibration free cutting. Side-to-side mobile vice with quick approach lever. Designed to avoid rust seizure and chips jamming. Mechanical blade tension with handwheel. Precision blade-guide with hard metal pads and roller bearings. Anti-corrosion treatement with electrolytic nickel-plating and galvanization zinc plating ensure long lasting cutting precision. Electric installation according CEE. Set of fuses against current overload. Motor protected thermal feeler. Safety microswitch on the blade protection. Coolant liquid with electropump and crucible. Severe tests on mechanical tolerances, electric installation and final performance test.


STANDARD EQUIPMENT
Set of service spanners.
Bar stop.
Material support.
Bi-metal bandsaw 2750x27x0,9.
Certificate of conformity and instruction manual according to Machine Directive 2006/42/CE.


OPTIONAL EQUIPMENT
Rollerway 2 meters long on loading side (capacity 240 kg).
Rollerway 2 meters long on unloading side (capacity 240 kg) with bar stop.
Rollerway 2 meters long on loading side (capacity 1000 kg).
Rollerway 2 meters long on unloading side (capacity 1000 kg) with bar stop.

3Ph Electric motor
kW

1 - 1.4

Electropump

kW

0.06

Gearbox reduction ratio

I

40/1

Flywheel diameter

mm

300

Blade dimension

mm

2750 x 27 x 0,9

Cutting speed

m/1'

40/70

Vice opening

mm

305

Sawframe inclination

°

30

Working height

mm

1030

Machine dimension

mm

1000 x 1800 x 1600

Weight

kg

350
