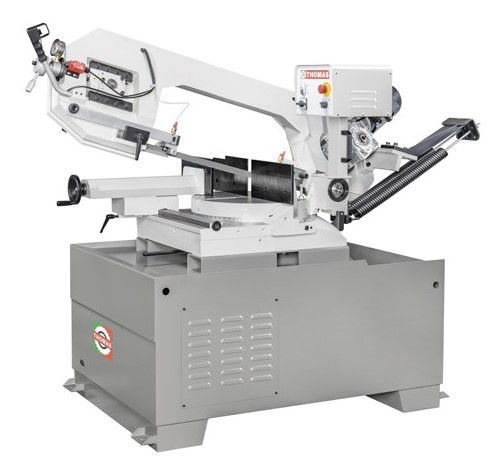

THOMAS ZIP 38 Manual horizontal bandsaw

Manual horizontal ZIP 38 bandsaw for small to medium sized ferrous material. Large “plateau” which turns with the blade mitering guaranteeing excellent support and space to the material to cut.

This system prevents the blade from cutting the working table, as can happend with the conventional bandsaws.
Blade tension by hand wheel and safety microswitch in case of blade breakage or insufficent blade tension.
Massive cast-iron vice with handwheel and quick lock vice lever. The vice is equipped with a pratical handle for rapid movement and mounted on a rail to allow lateral displacement
Double miter cutting (45° left and from 0° to 60° right).
Two cutting speeds.

Blade rotation start switch with maintainded action on the sawframe grip.
Control pannel setted on a fixed arm support.
Coolant liquid with electropump and crucible.
Pedestal in steel plate..

Cutting cycle
Vice locking of material to cut. The saw band runs as long as the operator holds the gripswitch on the sawframe lever. Manual pull down and rise of the sawframe.


TECHNICAL FEATURES AND CUTTING CAPACITY
High level machining and finishing of the parts.
Cast-iron sawframe on twin tapered bearings and ring nut to provide greater stability and vibration free cutting.
Mechanical blade tension with handwheel.
Vice with quick lock lever.
Precision blade guide with tungsten carbide pads and adjustable rollers.
Anti-corrosion treatment with electrolytic nickel-plating and galvanization zinc plating ensure long lasting cutting precision.
Electric installation according CE regulations.
Set of fuses against current overload.
Motor protected thermal feeler. Safety microswitch on the blade protection.
Severe tests on mechanical tolerances, electric installation and final performance test.


STANDARD
Set of service spanners.
Bar stop rod with millimiter scale.
Material support.
Bi-metal sawband 2750x27x0,9.
Certificate of conformity and instruction manual according to Machine Directive 2006/42/CE.


ACCESSORIES
Rollerway on loading side 2 mt
Rollerway on unloading side 2 mt with bar stop


3Ph Electric motor

kW

0.75 - 1.5

Electropump

kW

0.06

Gearbox reduction ratio

I

40/1

Flywheel diameter

mm

300

Blade dimension

mm

3310 x 27 x 0,9

Cutting speed

m/1'

40-80

Vice opening

mm

340

Sawframe inclination

°

30

Working height

mm

870

Machine dimension

mm

1330 x 2130 x 2030

Weight

kg

510

Packing details

mm

1000 x 2250 x 1650 / 590 Kg
