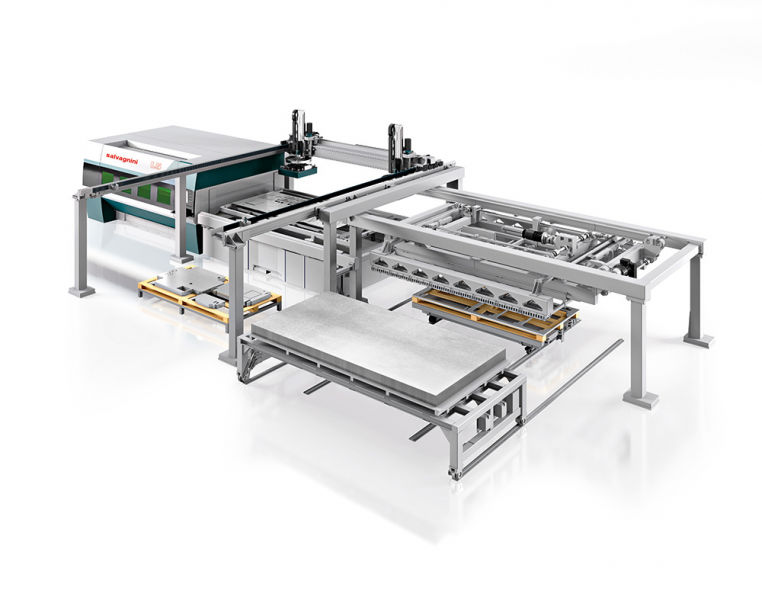

Salvagnini L5-30 2 kW
The result of lengthy experience in the field - Salvagnini was one of the first companies in the world to invest in fiber technology - the L5 is a productive and versatile solution, with high dynamics and competitive operating costs, that respects the environment, humankind and its work.
The L5 is the machine that Salvagnini has dedicated exclusively to fiber. Its cutting-edge technology means that it is able to reach the very highest levels in terms of speed, accuracy, reliability and performance.
The fruit of Salvagninis consolidated experience in the field, the L5 today represents the future of fiber cutting. Salvagnini has been designing and manufacturing flexible and automatic 2D laser-cutting machines and systems since 1994, providing comprehensive and versatile solutions that are extremely innovative and automated. All Salvagnini laser machines feature revolutionary mechanical and control solutions, together with original programming and nesting software, so as to assure ease of use along with maximum flexibility and productivity.
The fruit of Salvagninis consolidated experience in the field, the L5 today represents the future of fiber cutting. Salvagnini has been designing and manufacturing flexible and automatic 2D laser-cutting machines and systems since 1994, providing comprehensive and versatile solutions that are extremely innovative and automated. All Salvagnini laser machines feature revolutionary mechanical and control solutions, together with original programming and nesting software, so as to assure ease of use along with maximum flexibility and productivity.
| Productivity: | high dynamics and reduced consumption |
| Adaptivity: | real-time control |
| Versatility: | selectable operating mode |
| Simplicity: | automatic parameter modulation |
| Ergonomics: | airplane structure |
| Configuration: | modular automation |
| X Y worktable | 3048x1524 |
| Z axis stroke | 100 |
| Maximum XY speed (m/min) | 156 |
| Accuracy: | |
| Position accuracy Pa | 0.08 |
| Average position range Ps | 0.03 |
| Cutting capacity (thicknesses) | |
| Steel (S185JR,S235JR, RAEX 250 C LASER) | 0.5-15 |
| Stainless steel (AISI 304, X5CrNi18-10 1.4301) | 0.5-10 |
| Aluminum (Al 99.5 EN AW 1050A) | 0.5-8 |
| Copper (Cu-ETP CW004A H040 EN1652) | 0.5-5 |
| Brass (CuZn37 CW508L H055 EN1652) | 0.5-5 |
| Consumption | |
| Maximum power consumption (kW) | 16 kW |
| Average power consumption (kW) | 11 kW |
