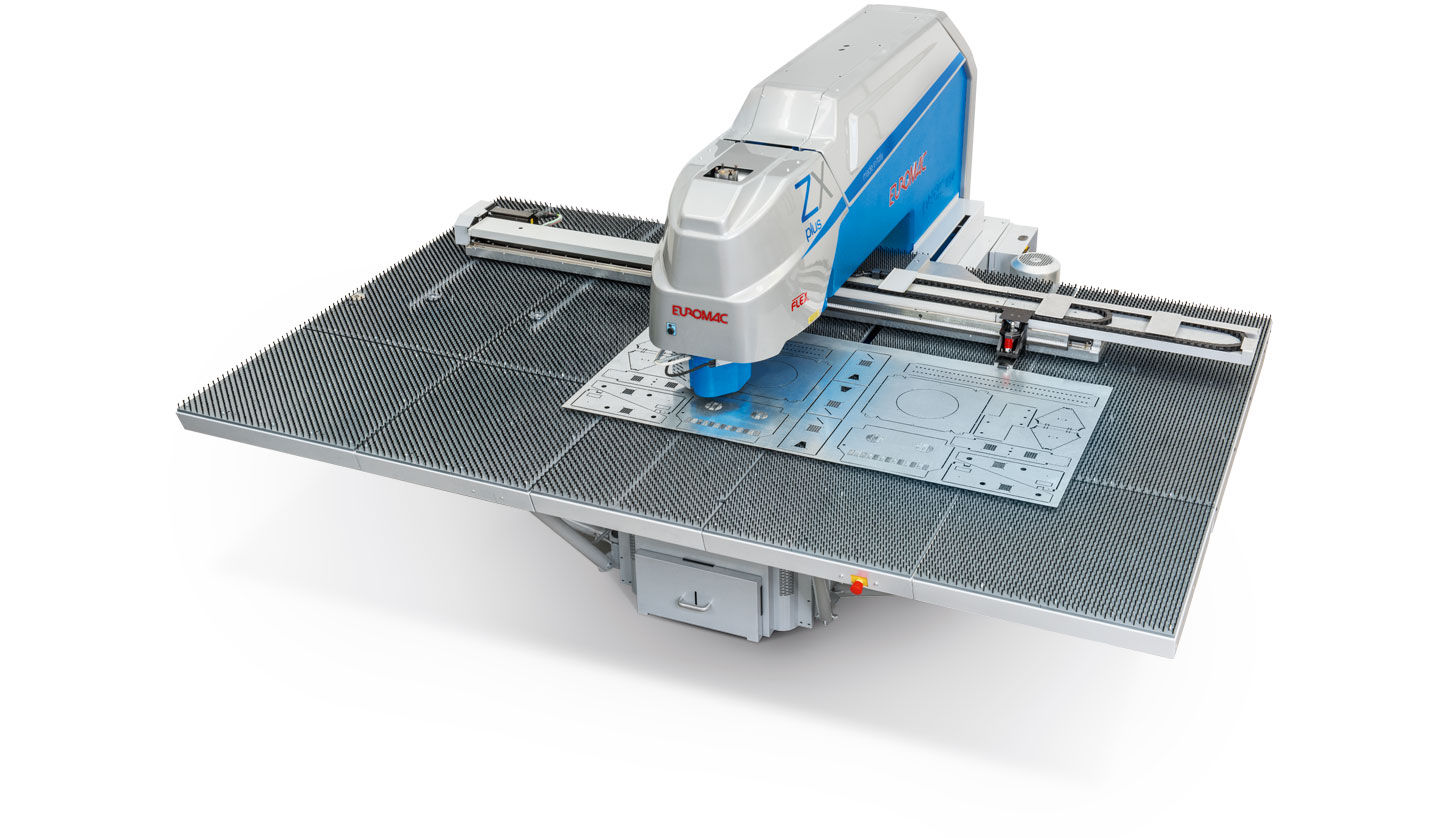

Euromac ZX Plus Flex Hybrid 1250/30-1300
The new frame with an increase of dimensions enables the machine to operate with higher speeds thus ensuring greater stability and working precision.
| Max. punching force (kN) | 300 |
| Y axis with Multitool / Monoounch (mm) | 1300 / 1250 |
| X axis (mm) | 1300 |
| Automatic repositioning in X (mm) | up to 10000 |
| Numerically control stroke depht (mm) | from 0.1 to 31 |
| Hydraulic servomotor controlled system | standard |
| Position accuracy (mm) | +/- 0.05 |
| Precision in forming repeatability (mm) | +/- 0.1 |
| Bidirectional “D” Autoindex stations | 1 |
| Opening of clamps (mm) | 11 |
| Automatic positioning clamps | 2 |
| Max. hit rate (1/min): | |
| Punching with 20 mm pitch | 375 |
| Nibbling with 1 mm pitch | 1000 |
| Marking | 2000 |
| Thickness range (mm) | 0.6-6 |
| Max. thickness (mm) with op. clamps 13 mm (for copper / aluminium) | 12.5 |
| Max. weight at reduced axis speed (kg) | 150* |
| USB port | 6 |
| Installed power (kW) | 8.5 |
| Average consumption (kW/h) | 4.5 |
| Approx, weight (kg) | 7900 |
| Overall dimensions (mm) | 2230 x 3630 |
| * for sheets of over 50 kg weight combined brush and balls tables are required | |
